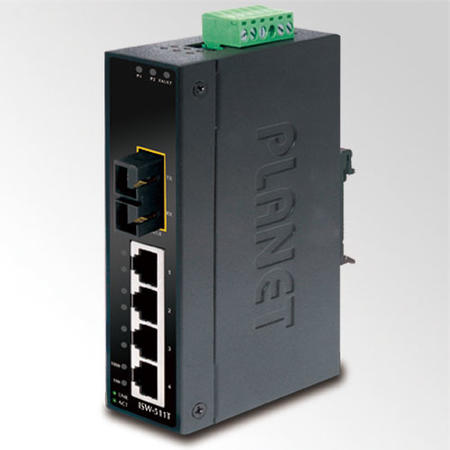

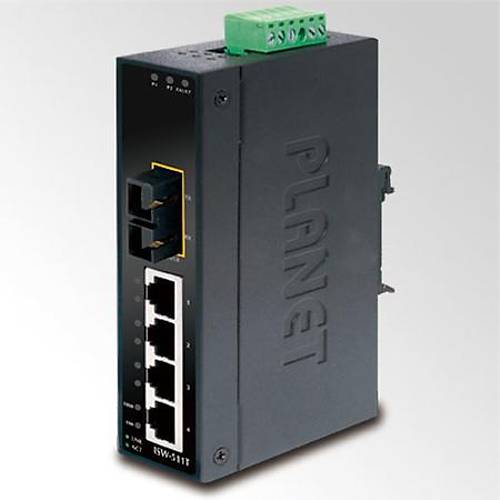

Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)
4-Port 10/100Base-TX
1-Port 100Base-FX Single-mode SC 15 km
IP30, -40~75 Derece C
Physical Port
- 4-Port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-511T series
- 1-Port 100Base-FX interface on ISW-511T for up to 2km (Multimode fiber 62.5/125μm, 50/125µm) transmission distance
- 1-Port 100Base-FX interface on ISW-511TS15 for up to 15km
- (Single-mode fiber 9/125µm) transmission distance Layer 2 Features
- Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
- Supports Auto-Negotiation and 10/100Mbps half / full duplex mode for each copper port
- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets
- to optimize the network bandwidth
- Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
- Backplane (Switching Fabric): 1Gbps
- Integrated address look-up engine, supports 2K absolute MAC addresses
- 1Mbit on-chip frame buffer
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case / Installation
- IP-30 Metal case / Protection
- DIN Rail and Wall Mount Design
- 12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal block for master and slave power
- Supports EFT protection 6KV DC for power line
- Supports 6KV DC Ethernet ESD protection
- -40 to 75 Degree C wide operating temperature
| Hardware Specifications |
| Copper | Ports
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X
Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical | Port
1 x 100Base-FX
Cable
ISW-511T: 50/125μm / 62.5/125μm fiber
ISW-511TS15: 9/125μm fiber
Mode
ISW-511T: Multi-mode
ISW-511TS15: Single-mode
Distance
ISW-511T: 2km
ISW-511TS15: 15km
Frequency
ISW-511T: 1310nm
ISW-511TS15: 1310nm
Launch Power
ISW-511T: Max. -14dBm, Min. -20dBm
ISW-511TS15: Max. 0dBm, Min. -20dBm
Receive Sensitivity
ISW-511T: -32dBm
ISW-511TS15: -32dBm
Max. Input Power
ISW-511T: -14dBm
ISW-511TS15: 0dBm |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 436g |
| Power Requirements | 12~48V DC
Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | 13.7 watts / 46 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1Gbps |
| Throughput (Packet Per Second) | 0.74Mpps @ 64Bytes |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex flow control |
| Temperature | Operating: -40~75 degrees C
Storage: -40~85 degrees C |
| Humidity Operating | Operating: 5~90%
Storage: 5~90% (Non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-ISW-511TS15 |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4711213688300
