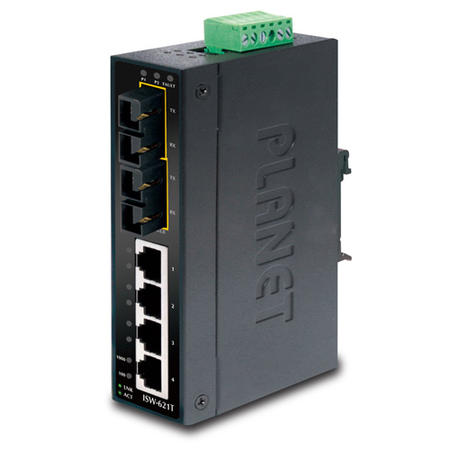

Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)
4-Port 10/100Base-TX
2-Port 100Base-FX Multi-mode SC 2 km
IP30, 40~75 Derece C
Physical Port
• 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
• 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
• 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance
Layer 2 Features
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
• Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
• High performance Store and Forward architecture
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (Switching Fabric): 1.2Gbps
• Integrated address look-up engine, supporting 2K absolute MAC addresses
• 1Mbit on-chip frame buffer
• Automatic address learning and address aging
• CSMA/CD Protocol
Industrial Case / Installation
• IP30 metal case / protection
• DIN rail and wall mount design
• 12 to 48V DC, redundant power with polarity reverse protection and connective removable
?terminal block for master and slave power
• Supports EFT protection 6KV DC for power line
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C wide operating temperature
| Hardware Specifications |
| Copper Interface | Ports
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X
Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical Interface | Port
2 x 100Base-FX
Cable
ISW-621T: 50/125μm / 62.5/125μm fiber
ISW-621TS15: 9/125μm fiber
Mode
ISW-621T: Multi-mode
ISW-621TS15: Single-mode
Distance
ISW-621T: 2km
ISW-621TS15: 15km
Wavelength
ISW-621T: 1310nm
ISW-621TS15: 1310nm
Launch Power
ISW-621T: Max. -14dBm, Min. -20dBm
ISW-621TS15: Max. 0dBm, Min. -20dBm
Receive Sensitivity
ISW-621T: -32dBm
ISW-621TS15: -32dBm
Max. Input Power
ISW-621T: -14dBm
ISW-621TS15: 0dBm |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements | 12~48V DC
Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specifications |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) | 0.89Mpps @ 64Bytes |
| Standards Conformance |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T
IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
IEEE 802.3x full-duplex Flow Control |
| Temperature | Operating: -40~75 degrees C
Storage: -40~85 degrees C |
| Operating Humidity | Operating: 5~90%
Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-ISW-621T |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
