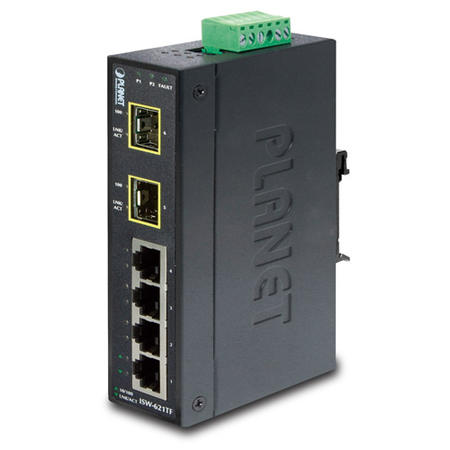

    Planet PL-ISW-621TS15 4 Port 10/100/Base-Tx 2 Port SFP Endüstriyel Ethernet Switch

    Görsel 1
    Para_Puan : 36.072
    4.328,64 TL
    Havale / EFT:
    4.190,12 TL
    808,01 TL'den başlayan taksit seçenekleri için tıklayın.
    Kargo Bedava
    Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)
    4-Port 10/100Base-TX
    2-Port 100Base-FX Single-mode SC 15 km
    IP30, 40~75 Derece C

    Physical Port
    • 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
    • 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
    • 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance

    Layer 2 Features
    • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
    • Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
    • High performance Store and Forward architecture
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • Backplane (Switching Fabric): 1.2Gbps
    • Integrated address look-up engine, supporting 2K absolute MAC addresses
    • 1Mbit on-chip frame buffer
    • Automatic address learning and address aging
    • CSMA/CD Protocol

    Industrial Case / Installation
    • IP30 metal case / protection
    • DIN rail and wall mount design
    • 12 to 48V DC, redundant power with polarity reverse protection and connective removable
    ?terminal block for master and slave power
    • Supports EFT protection 6KV DC for power line
    • Supports 6KV DC Ethernet ESD protection
    • -40 to 75 degrees C wide operating temperature


    Hardware Specifications
    Copper InterfacePorts
    4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X

    10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
    100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
    Optical InterfacePort
    2 x 100Base-FX

    ISW-621T: 50/125μm / 62.5/125μm fiber
    ISW-621TS15: 9/125μm fiber

    ISW-621T: Multi-mode
    ISW-621TS15: Single-mode

    ISW-621T: 2km
    ISW-621TS15: 15km

    ISW-621T: 1310nm
    ISW-621TS15: 1310nm

    Launch Power
    ISW-621T: Max. -14dBm, Min. -20dBm
    ISW-621TS15: Max. 0dBm, Min. -20dBm

    Receive Sensitivity
    ISW-621T: -32dBm
    ISW-621TS15: -32dBm

    Max. Input Power
    ISW-621T: -14dBm
    ISW-621TS15: 0dBm
    Dimensions (W x D x H)135 x 97 x 32 mm
    Power Requirements12~48V DC
    Redundant power with polarity reverse protection function
    Power Consumption / DissipationMax. 16 watts / 54 BTU
    InstallationDIN rail kit and wall mount ear
    AlarmProvides one relay output for power failure
    Alarm relay current carry ability: 1A @ DC 24V
    Switch Specifications
    Switch Processing SchemeStore-and-Forward
    Address Table2K entries
    Flow ControlBack pressure for half duplex,
    IEEE 802.3x pause frame for full duplex
    Switch Fabric1.2Gbps
    Throughput (Packet Per Second)0.89Mpps @ 64Bytes
    Standards Conformance
    Standards ComplianceIEEE 802.3 Ethernet, 10Base-T
    IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX
    IEEE 802.3x full-duplex Flow Control
    TemperatureOperating: -40~75 degrees C
    Storage: -40~85 degrees C
    Operating HumidityOperating: 5~90%
    Storage: 5~90% (non-condensing)
    Regulation ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC60068-2-32(Free fall)
    Diğer Özellikler
    Stok KoduPL-ISW-621TS15
    Stok DurumuVar
    Garanti (Yıl)2
