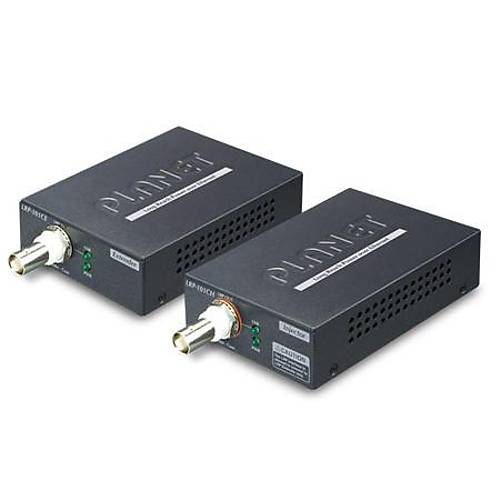

      1-Port Long Reach PoE over coax Extender Kit (LRP-101CH + LRP-101CE)


      Power over Ethernet
      • Eliminates power cabling with PoE over coaxial
      • Supports Power over Ethernet PSE (PoE Injector)
      • Power and Ethernet data transmission of 1,000m over coaxial cabling
      • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PD on RJ45 port
      • Supports Long Reach PoE power up to 30.8 watts (depending on power source and cable distance)
      • Supports PoE Power up to 25 watts (depending on power source and cable distance)
      • Auto detects remote powered device (PD)
      • Plug and Play; no PC required

      Industrial Case and Installation
      • Supports extensive LED indicators for network diagnostics
      • Metal case protection
      • Compact size, DIN-rail and wall-mount design
      • Supports EFT surge protection of 2kV DC for power line
      • Supports Ethernet ESD protection of 4KV DC
      • -20 to 70 degrees C operating temperature



      Hardware Specifications
      Ethernet InterfaceLRP-101CH
      ? Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
      ? Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
      ? PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
      ? Data Rate: 100/100Mbps
      ? Cabling: Cat5e or above
      ? Maximum Distance: 100 meters
      ? Maximum Frame Size: 1522 bytes

      LRP-101CE
      ? Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
      ? Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
      ?(Power Source Equipment)
      ? PoE Output: 56V DC, 600mA max.
      ? PoE Budget: Up to 25 watts
      ? PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
      ? Data Rate: 100/100Mbps
      ? Cabling: Cat5e or above
      ? Maximum Distance: 100 meters
      ? Maximum Frame Size: 1522 bytes

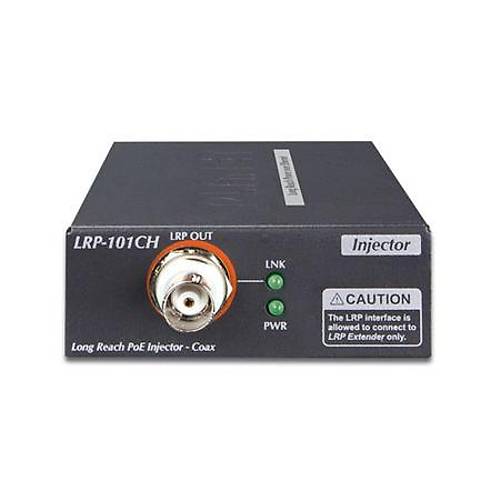

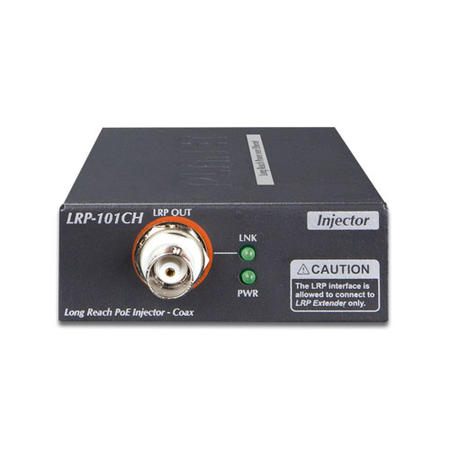

      Long Reach PoE InterfaceLRP-101CH
      ? Connectivity: 1 x BNC female connector Long Reach PoE over coaxial PSE
      ?(Power Source Equipment)
      ? Power Output: 41~56V DC
      ? Power Pin Assignment: ?
      ?BNC center pole: DC+
      ?BNC shield: DC-
      ? Cabling:
      ?Coaxial cable: 75 ohm
      ?RG-6/U cable, less than 12Ω/1,000ft.
      ?RG-59/U cable, less than 30Ω/1,000ft.
      ? Maximum Distance:
      ?Max. 200m with PoE+ output (656ft.)
      ?Max. 1000m with PoE output (1,968ft.)
      ?Max. 1600m without PoE output (3,937ft.)
      ? Long Reach Ethernet Standard: IEEE 1901
      ? Modulation Type: Wavelet-OFDM
      ? Security: 128-bit AES encryption
      ? Frequency Band: 2 ~ 28 MHz
      ? Encryption: AES 128-bit
      ? LRP Compatibility: LRP-101CE, 1-Port LRP Extender

      LRP-101CE
      ? Connectivity: 1 x BNC female Long Reach PoE over coaxial PD
      ?(Powered Device)
      ? Power Input: 37~56V DC
      ? Power Pin Assignment: ?
      ?BNC center pole: DC+
      ?BNC shield: DC-
      ? Cabling:
      ?Coaxial cable: 75 ohm
      ?RG-6/U cable, less than 12Ω/1,000ft.
      ?RG-59/U cable, less than 30Ω/1,000ft.
      ? Maximum Distance:
      ?Max. 200m with PoE+ output (656ft.)
      ?Max. 1000m with PoE output (1,968ft.)
      ?Max. 1600m without PoE output (3,937ft.)
      ? Long Reach Ethernet Standard: IEEE 1901
      ? Modulation Type: Wavelet-OFDM
      ? Security: 128-bit AES encryption
      ? Frequency Band: 2 ~ 28 MHz
      ? Encryption: AES 128-bit
      ? LRP Compatibility: With power over coaxial input
      ?LRP-101CH, 1-Port LRP Injector
      ?LRP-822CS, 8-Port LRP over Coax Switch
      ?LRP-1622CS, 16-Port LRP over Coax Switch

      Performance**
      Distance
      Data Rate*
      (Upload / Download)
      LRP-101CE 802.3af/at PoE Output Capability**
      LRP-101CH
      with 56V DC in
      LRP-101CH
      with 30W PoE+ in
      200m
      93 / 93Mbps
      29W
      16W
      400m
      93 / 93Mbps
      22W
      14W
      600m
      87 / 91Mbps
      13W
      10W
      800m
      75 / 83Mbps
      10W
      8W
      1000m
      55 / 73Mbps
      8W
      7W
      LED IndicatorsLRP-101CH
      4 x LEDs
      ? PWR
      ? LRP LNK
      ? PoE IN
      ? LNK/ACT

      LRP-101CE
      4 x LEDs
      ? PWR
      ? LRP LNK
      ? PoE-in-use
      ? LNK/ACT
      ESD Protection4KV DC
      EFT ProtectionLRP-101CH
      ? 2KV

      LRP-101CE
      ? -
      EnclosureMetal case
      InstallationWall mount or DIN rail with optional kit
      Dimensions (W x D x H)94 x 70 x 26 mm
      WeightLRP-101CH
      ? 200g

      LRP-101CE
      ? 375g

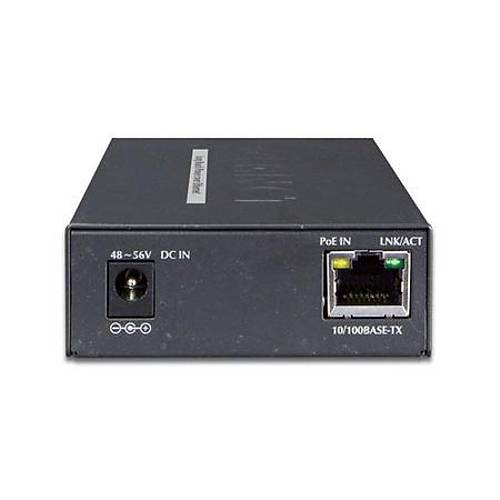

      Power RequirementsLRP-101CH
      ? RJ45 PoE Input: 802.3at/af 48~56V DC
      ? DC Input: 48~56V DC

      LRP-101CE
      ? BNC Power over Coaxial Input: 44~56V DC
      Standards Conformance
      Standards ComplianceIEEE 802.3 10BASE-T Ethernet
      IEEE 802.3u 100BASE-TX Fast Ethernet
      IEEE 802.3af Power over Ethernet (802.3at Type 1)
      IEEE 802.3at Power over Ethernet (802.3at Type 2)
      Regulation ComplianceFCC Part 15 Class A, CE
      Environment
      TemperatureOperating: -20~70 degrees C
      Storage: -40~75 degrees C
      HumidityOperating: 5~95% (non-condensing)
      Storage: 5~95% (non-condensing)
      Note
      Note*1.Upload: LRP-101CE to LRP-101CH,data stream.
      ?Download: LRP-101CH to LRP-101CE,data stream.
      2.As there are various resistance values in the category of RG-59/U or
      ?RG-6/U cable,the actual data rate will vary on the quality of the copper
      ?wire and environment factors.
      **Depending on what the DC/PoE Power Input and the length of coaxial
      ?cable are.
