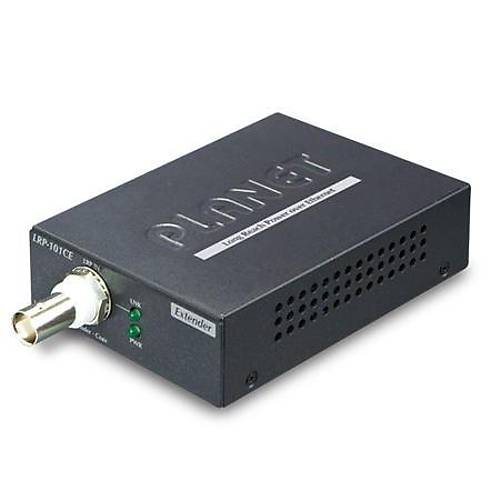

1-Port Long Reach PoE over Coaxial Extender

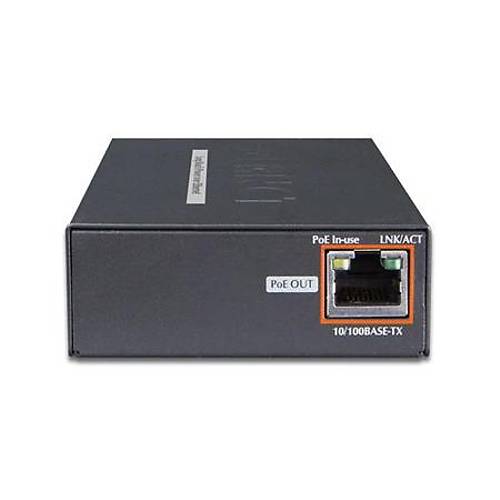

• 1 x 10/100BASE-TX RJ45 copper interface, supporting IEEE 802.3af/at PoE PSE
• 1 x BNC connector, supporting 44~56V DC power input and Ethernet data transmission

• Supports Power over Ethernet PSE, PoE Injector
• Eliminates power cabling with PoE over Coaxial
• Power and Ethernet data transmission over coaxial up to 1km
• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PSE on RJ45 port
• Supports PoE power up to 25 watts (depending on Power Source and Coaxial Distance)
• Auto detects remote powered device (PD)

• Supports extensive LED indicators for network diagnostics
• Metal case protection
• Compact size, DIN-rail and wall-mount design
• Power Input: PoC (Power over Coaxial) power input
• Supports 4KV DC Ethernet ESD protection
• -20 to 70 degrees C operating temperature
