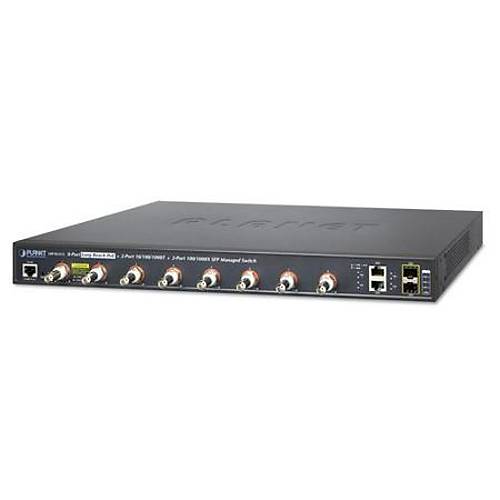

8-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch
Physical Port
8 100Mbps BNC female ports with Long Reach PoE Injector function
2 10/100/1000BASE-T Gigabit RJ45 copper ports
2 100/1000BASE-X mini-GBIC/SFP slots
RJ45 console interface for switch basic management and setup
Long Reach Power over Ethernet
- Total Long Reach PoE power budget control
- Per port Long Reach PoE function enable/disable
- Long Reach PoE port power feeding priority
- Per Long Reach PoE port power limitation
- Long Reach PD alive check
- Long Reach PoE schedule
Supports PoE power up to 36 watts for each PoE port

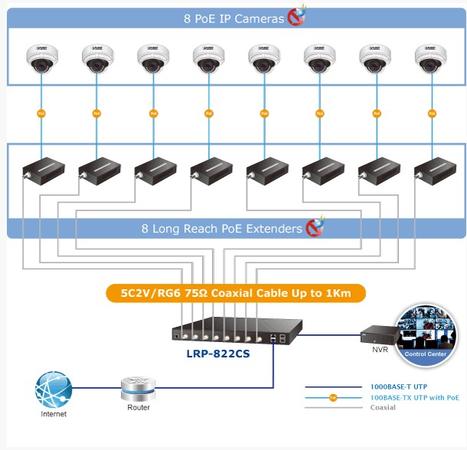

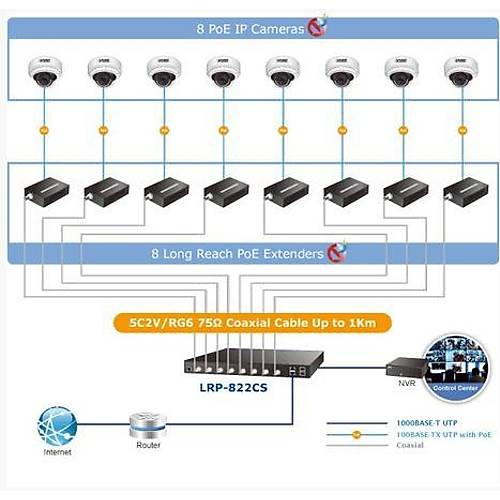

Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable
Long Reach PoE Management
Layer 2 Features
- IEEE 802.1Q tagged VLAN
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Protocol VLAN
- Voice VLAN
- Private VLAN
- Management VLAN
- GVRP
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 4 trunk groups, up to 4 ports per trunk group
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
Supports Spanning Tree Protocol
Supports Link Aggregation
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Quality of Service
- Broadcast / Unknown unicast / Unknown multicast
- IEEE 802.1p CoS
- ToS / DSCP / IP Precedence of IPv4/IPv6 packets
Ingress / Egress rate limit per port bandwidth control
Storm control support
Traffic classification
Strict priority and Weighted Round Robin (WRR) CoS policies
- Built-in RADIUS client to co-operate with the RADIUS servers
RADIUS / TACACS+ login user access authentication
- IPv4 / IPv6 IP-based ACL
- MAC-based ACL
- Static MAC
- MAC filtering
Authentication
Access Control List
MAC Security
Port security for source MAC address entries filtering
DHCP snooping to filter untrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH / SSL
Management
- Web switch management
- Telnet command line interface
- SNMP v1, v2c and v3
- SSH / SSL secure access
- Firmware upload/download via HTTP / TFTP
- Configuration upload/download through Web interface
- Dual images
- Hardware reset button for system reboot or reset to factory default
IPv4 and IPv6 dual stack management
Switch management interface
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System maintenance
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SNMP trap for interface linkup and linkdown notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery utility
Smart fan with speed control
Hardware Specifications
Ethernet Interfaces
? Copper: • 2 x 10/100/1000BASE-T RJ45 • Auto-negotiation/ Auto-MDI/MDI-X
? Fiber Optic: • 2 x 100/1000BASE-X SFP slot • Supports 100/1000Mbps dual mode and DDM
? Jumbo Frame: • 10Kbytes with GE1 to GE4
Long Reach PoE Interfaces
? Connectivity: • 8 x BNC female connectors Long Reach PoE over coaxial PSE (Power Source Equipment) - BNC center pole : DC+ / Hi - BNC shield : DC - / Lo
? Power Output: • Per port 54V DC, 36 watts max.
? Total Power Budget: • 240 watts (max.) @ 25 degrees C • 200 watts (max.) @ 50 degrees C
