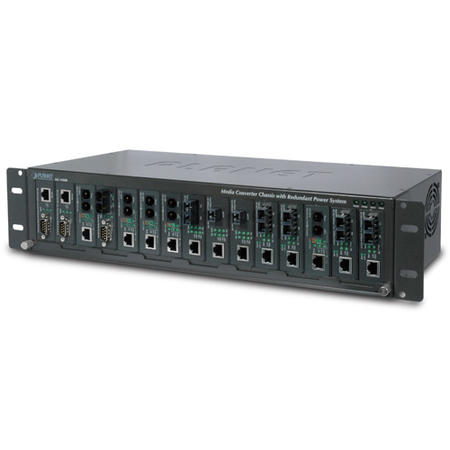

19-inch 15-Slot Media Converter Chassis (AC Power)
Hardware
?–High quality 19" Rack-mountable chassis installation
?–Supplies the converters modules to be plugged and played
?–Supports up to fifteen hot-swappable media converters
?–Two fans built-in for hardware cooling
?–Reduces the effort of converter maintenance and management, diagnose the status at one time
• Power System
?–Bay power isolation to ensure each bay is electrically isolated from each other
?–Power protection: protection from over voltage, over current and short circuit
• Compatibility
?–Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x
?–Supports VDSL2 Media Converter: VC-201A / VC-231
?–Supports Serial over Ethernet Converter: ICS-10x series
| Hardware Specifications |
| Dimensions (W x D x H) | 438 x 200 x 103 mm, 2.4U high |
| Slot | 15 open slots (Slot Dimensions (W x D x H) 27 x 95 x 71 mm,) |
| LED | Power 1, Power2, Fan1, Fan2 |
| Fan | 2 x Fan |
| Weight | 4.3kg |
| Power Requirements | 100~240V AC, 3.3A, 50-60Hz |
| Power Output | Each slot 5V DC 1A |
| Power Consumption | 10 watts / 34.1BTU (System only)
80 watts / 272BTU (Full loading) |
| Operating Environment | 0~50 degrees C, 5%~90%RH |
| Storage Environment | -20~70 degrees C, 5%~90%RH |
| Emission | FCC Class A, CE mark |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-MC-1500R |
| Marka | PLANET |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
4711213687761
