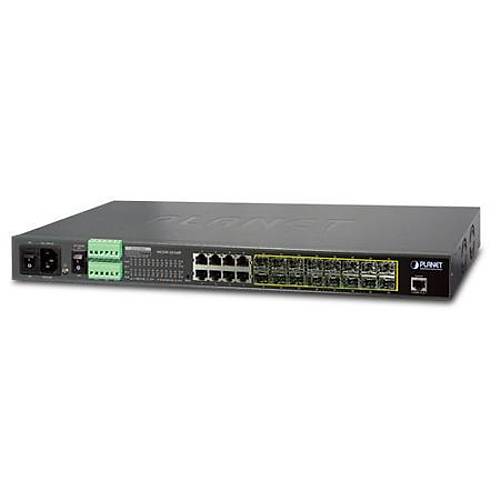

Planet PL-MGSW-24160F 16 Port 1000BAse-X 8 1000Basae-T L2 Yönetilebilir Metro Switch

Layer 2+ Managed Metro Ethernet Switch
16 x 100/1000BASE-X mini-GBIC/SFP yuva
8 x 10/100/1000BASE-T
1 x Konsol port

Physical Port

• 16 100/1000BASE-X mini-GBIC/SFP slots
• 8 10/100/1000BASE-T RJ45 copper ports
• RJ45 to RS232 DB9 console interface for basic management and setup

Hardware Conformance

• 36 to 60V DC, redundant power with polarity reverse protect function
• 0 to 60 degrees C operating temperature
• 19-inch rack-mountable
• Relay alarm for port breakdown, power failure
• Two built-in thermal fans

Layer 2 Features

- Broadcast / Unicast / Unknown unicast

- IEEE 802.1Q tagged VLAN

- Up to 255 VLANs groups, out of 4095 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- IP subnet-based VLAN

- Voice VLAN

- STP, IEEE 802.1D Spanning Tree Protocol

- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN

- BPDU Guard

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 24 trunk groups, with 8 ports for each trunk

- Up to 16Gbps bandwidth (full duplex mode)

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm control support
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports Link Aggregation
• Provides port mirror (many-to-1)
• Port mirroring monitors the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops

Layer 3 IP Routing Features

• Supports maximum 32 static routes and route summarization

Quality of Service

- IEEE 802.1p CoS

- ToS / DSCP / IP Precedence of IPv4/IPv6 packets

- IP TCP/UDP port number

- Typical network application

• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IGMP snooping v1, v2 and v3
• Supports MLD snooping v1 and v2
• Querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• MVR (Multicast VLAN Registration)

Security

- IEEE 802.1x port-based / MAC-based network access authentication

- IEEE 802.1x authentication with guest VLAN

- Built-in RADIUS client to cooperate with the RADIUS servers

- RADIUS / TACACS+ users access authentication

- IP-based Access Control List (ACL)

- MAC-based Access Control List (ACL)

• Authentication
• Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

Management

- Console / Telnet command line interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH / SSL secure access

- Firmware upload / download via HTTP / TFTP

- Reset button for system reboot or reset to factory default

- Dual images

- SFP-DDM (Digital Diagnostic Monitor)

- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues

- ICMPv6 / ICMPv4 remote ping

• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• IPv6 address / NTP management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• DHCP relay and option 82
• User privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network diagnostic
• SMTP / Syslog remote alarm
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface link up and link down notification
• System Log
• PLANET Smart Discovery Utility for deploy management

Redundant Power System

• 100~240V AC / 36~60V DC dual power redundancy
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience

Digital Input
