12-Port Gigabit IEEE 802.3at/af PoE+ Managed Injector Hub
PoE Güç Bütçesi maks. 220 Watt (aynı anda 12 adet 30,8 Watt verebilir)
Interface- - 12-port 10/100/1000Mbps “Data input”
- - 12-port 10/100/1000Mbps “Data + Power output”
- Complies with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Ethernet standards
- 24-port RJ45
- One 10/100/1000BASE-T management port
- Reset button for system management
Power over Ethernet- Complies with IEEE 802.3at and IEEE 802.3af Power over Ethernet mid-span PSE

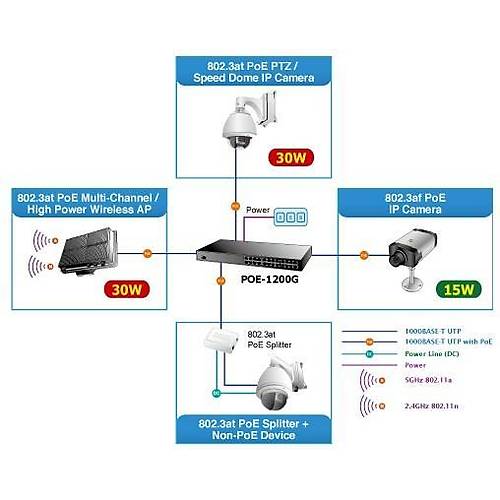

- Up to 12 IEEE 802.3at/802.3af devices powered
- 220-watt PoE budget
- Supports PoE power up to 30.8 watts (802.3at PoE)/15.4 watts (802.3af PoE) for each PoE port
- Automatically detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m cable length
PoE Management- Total PoE power budget control
- Per port PoE power schedule
- PoE function enable/disable
- Per port PoE function enable/disable
- PoE port power feeding priority
- PD classification detection
- Over temperature protection
- PD alive check
Management- Web interface for remote management
- Supports Network Time Protocol (NTP)
- Firmware upgrade through Web interface
- PLANET Smart Discovery utility automatically finds PLANET devices on the network
- SNMP trap for alarm notification of events
- System log and remote syslog
Hardware- 19-inch rack mountable; 1U height
- Reset button for resetting to default setting and system reboot
- LED indicators for PoE ready and PoE activity
- LED indicators for power alert and fan alert
- FCC Part 15 Class A, CE
| Hardware |
| Hardware Version | 4 |
| Interface | Data Input Ports: 12 x RJ45
Data + Power Output Ports: 12 x RJ45
Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX |
| Data Rate | 10/100/1000Mbps |
| LED | System:
SYS PWR x 1 (Green)
PoE Failure x 1 (Red)
Fan Failure x 1 (Red)
Per PoE Port: PoE-in-use x 1 (Green)
Management port: 1000 (Green), 10/100 (Orange) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m) |
| Power Requirements | 100-240V AC, 50/60 Hz, 4A |
| Power Consumption | 250 watts (max.) |
| Ventilation | Fan x 2 |
| Dimensions (W x D x H) | 440 x 300 x 44mm |
| Power over Ethernet |
| PoE Power Supply Type | Mid-span |
| PoE Power Output | Per port DC 52V 30.8/15.4 watts |
| Power Pin Assignment | 4/5(-), 7/8(+) |
| PoE Power Budget | 220 watts |
| Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered | 12 |
| Number of 802.3at PDs (Class 1, 2, 3) can be powered | 12 |
| Number of 802.3at PDs (Class 0, 4) can be powered | 7 |
| Management |
| Management Interface | Web, PLANET Smart Discovery Lite |
| PoE Management | Power limit by consumption and classification
PoE admin mode
Per port power schedule
Per port power enable/disable
Power feeding priority
Over temperature protection
Current per port usage and status
Total power consumption |
| Management Feature | Setup of system/management functions
Web firmware upgrade
SNMP trap for alarm notification of events |
| Standards Conformance |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 5424: Syslog |
| Environments |
| Operating | Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Diğer Özellikler |
|---|
| Stok Kodu | PL-POE-1200G |
| Marka | PLANET |
| Stok Durumu | Var |
