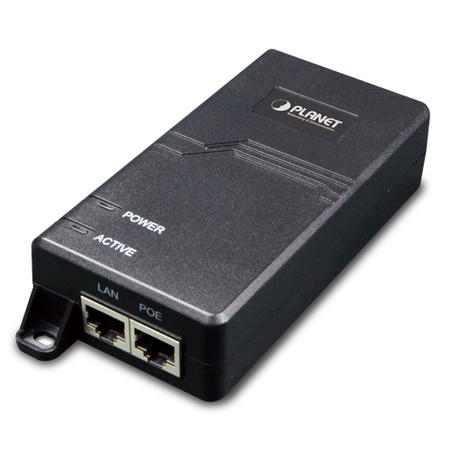

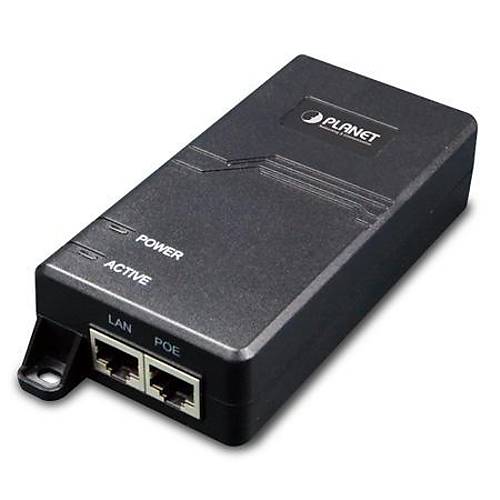

    • Planet PL-POE-163 Gigabit 1000Mbps 30W High Power Ethernet Injector

      Görsel 1
      Görsel 2
      Görsel 3
      Para_Puan : 7.986
      Fiyat:
      942,35 TL
      Havale / EFT:
      923,50 TL
      85,36 TL'den başlayan taksit seçenekleri için tıklayın.
      1
      Kargo Bedava

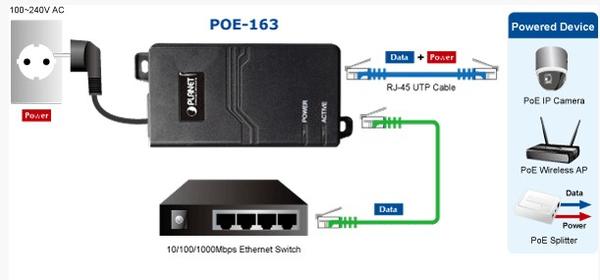

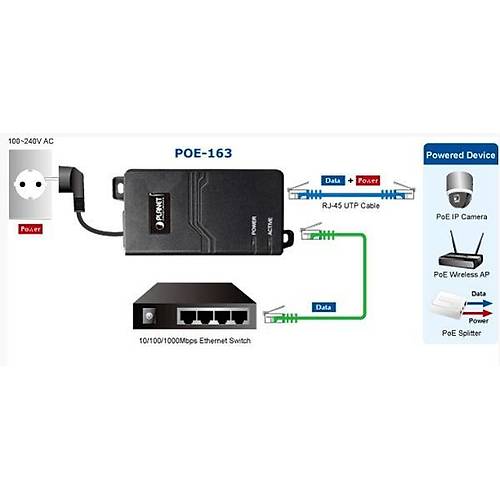

      IEEE 802.3at Gigabit High Power over Ethernet Injector (10/100/1000Mbps, Mid-span, 30 Watt)


      Interface
      - 1-port Data + Power output
      - 1-port Data input
      • 2-port RJ45 interfaces

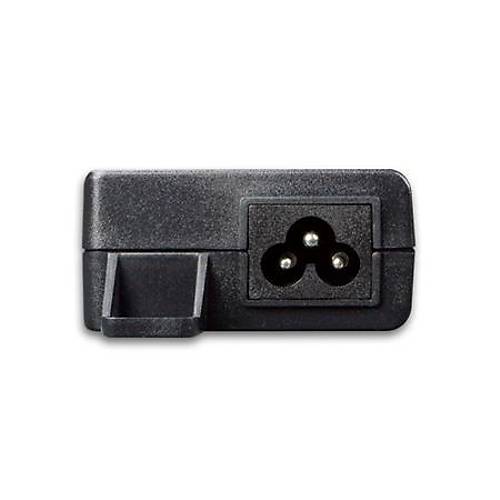

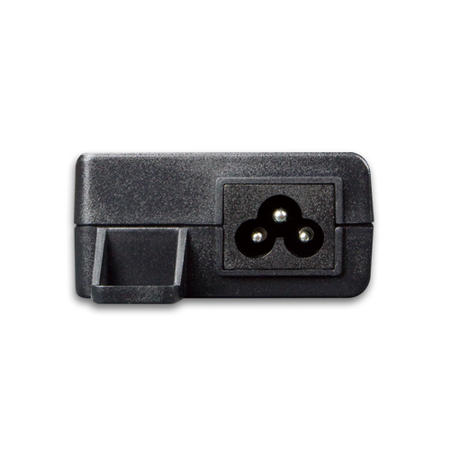

      • 1 AC 100-240V input power socket

      Power over Ethernet
      • 1-port Gigabit High Power over Ethernet Mid-span PSE
      • IEEE 802.3at Power over Ethernet Plus compliant
      • Backward compatible with IEEE 802.3af Power over Ethernet
      • Supports PoE Power up to 30 watts for PoE port
      • Up to 1 IEEE 802.3at device powered
      • Provides DC 53V power over RJ45 Ethernet cable to device with Ethernet port
      • Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation
      • Remote power feeding up to 100m

      Hardware
      • All-in-one design with internal power supply
      • Compact-size plastic case
      • LED indicators for Power LED and Active LED (PoE ready-in-use)

      Hardware Specifications
      Interface"Data" Input Port: 1 x RJ45 STP
      "PoE (Data + Power)" Output Port: 1 x RJ45 STP
      AC Input Power Socket: 1
      LED IndicatorSystem: Power x 1 (Green)
      PoE Port: Active, PoE ready-in-use x 1 (Green)
      Network Cable10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
      100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft)
      1000BASE-T: 2-pair UTP Cat. 5, 5e, 6 up to 100M (328ft)
      EIA/TIA-568 100-ohm STP (100m)
      Data Rate10/100/1000Mbps
      Dimensions (W x D x H)115 x 62.5 x 31 mm
      Weight177g
      Unit Output VoltageDC 53V, 0.6A
      Power Requirements100-240V AC, 50/60Hz, 0.75A
      Power Consumption30 watts max.
      Number of Devices that can be powered1
      Operating Temperature0 ~ 50 degrees C
      Storage Temperature-10 ~ 70 degrees C
      Operating Humidity5 ~ 95%, relative humidity, non-condensing
      Storage Humidity5 ~ 95%, relative humidity, non-condensing
      Power over Ethernet
      PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
      PoE Power OutputDC 53V/30 watts
      PoE Power Supply TypeMid-span
      Power Pin Assignment4/5(+), 7/8(-)
      Standards Conformance
      Standards ComplianceIEEE 802.3 10BASE-T Ethernet
      IEEE 802.3u 100BASE-TX Fast Ethernet
      IEEE 802.3ab 1000BASE-T Gigabit Ethernet
      IEEE 802.3at High Power over Ethernet Plus
      IEEE 802.3af Power over Ethernet
      Regulatory ComplianceFCC Part 15 Class B, CE

      Diğer Özellikler
      Stok KoduPL-POE-163
      MarkaPLANET
      Stok DurumuVar
      Garanti (Yıl)2
      4711213689345
