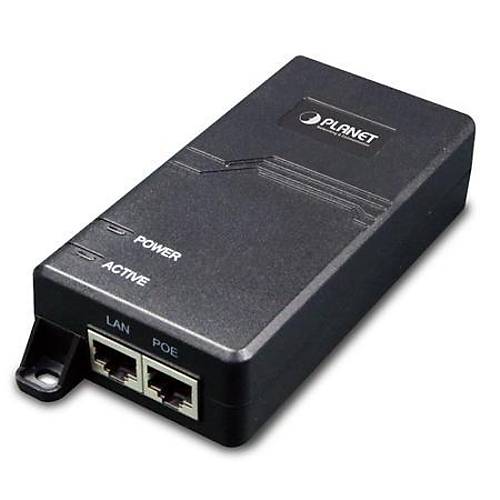

PLANET PL-POE-172 1 Port Gigabit Ultra 60W PoE Enjektör

Tek Port'lu 10/100/1000Mbps Ultra POE Enjektör(60 Watt) , dahili güce sahip, 802.3at PoE uyumlu
Single Port 10/100/1000Mbps Ultra POE Injector (60 Watts) - w/internal power, 802.3at PoE compatible



Hardware Specifications
Interface	LAN: 1 x RJ45 STP, “Data” Input Port PoE: 1 x RJ45 STP, “Data + Power” Output Port AC Connector: 1 x AC input power socket, IEC-320 C6
Network Cable	Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af/at PoE (15W/30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
LED Indicator	System: Power x 1 (green) PoE Port: Active, PoE ready/in-use x 1 (green)
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	115 x 62.5 x 31 mm
Weight	235g
Unit Output Voltage	DC 56V, 1.08A
Power Requirements	100-240V AC @50/60Hz, 1.5A max.
Power Consumption	60 watts max.
Operating Temperature	0 ~ 50 degrees C
Storage Temperature	-10 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
Power over Ethernet
PoE Standard	Ultra PoE over 4-pair UTP cable, IEEE 802.3at Power over Ethernet Plus End-span/Mid-span PSE
PoE Power Supply Type	End-span + Mid-span
Power Pin Assignment	Pair 1 End-span: 1/2 (+), 3/6 (-) Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE Power Output	DC 56V/60-watt PoE via 4-pair DC 56V/30-watt PoE via 2-pair
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet
Regulatory Compliance	FCC Part 15 Class B, CE

Ordering Information
POE-172	Single-Port 10/100/1000Mbps 60W Ultra PoE Injector
