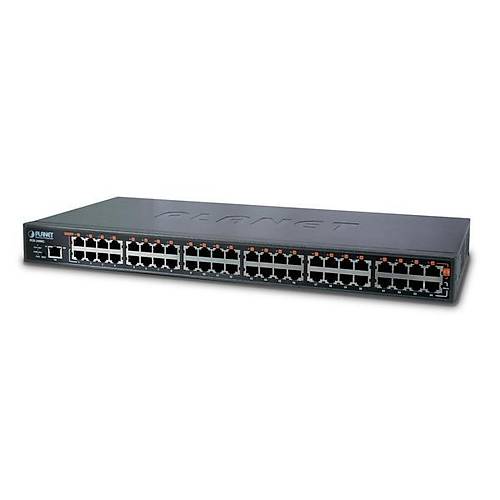

    Planet PL-POE-2400G 24 Port Gigabit PoE Injektor 440W PoE Switch

    Planet PL-POE-2400G 24 Port Gigabit PoE Injektor 440W PoE Switch Planet PL-POE-2400G 24 Port Gigabit PoE Injektor 440W PoE Switch
    Görsel 1
    Görsel 2
    Para_Puan : 241.540
    Fiyat:
    28.984,74 TL
    Havale / EFT:
    28.115,20 TL
    5.603,72 TL'den başlayan taksit seçenekleri için tıklayın.
    Aynı Gün Kargo Sınırlı Sayıda Kargo Bedava

    Ürüne Oy Verin

    Satıcıya Danış

    24-Port Gigabit IEEE 802.3at/af PoE Injector Hub  PoE Güç Bütçesi maks. 440 (aynı anda 24 adet 15,4 Watt verebilir)


    Hardware
    Hardware Version5
    Interface“Data” Input Ports: 24 x RJ45
    “Data+Power” Output Ports: 24 x RJ45
    Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
    Data Rate10/100/1000Mbps
    LEDSystem:
    ?SYS PWR x 1 (Green)
    ?PoE Failure x 1 (Red)
    ?Fan1 Failure x 1 (Red)
    ?Fan2 Failure x 1 (Red)
    Per PoE Port: PoE-in-use x 1 (Green)
    Management port x 2: 1000 (Green), 10/100 (Orange)
    Network Cable10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
    100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
    1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
    EIA/TIA- 568 100-ohm STP (100m)
    Power Requirements100-240V AC, 50/60 Hz, 8A
    Power Consumption500 watts (max.)
    VentilationFan x 2
    Dimensions (W x D x H)440 x 300 x 44mm
    Power over Ethernet
    PoE Power Supply TypeMid-span
    PoE Power OutputPer port DC 52V 30.8/15.4 watts
    Power Pin Assignment4/5(+), 7/8(-)
    PoE Power Budget440 watts@0~40 degrees C
    400 watts@41~50 degrees C
    Auto power budget control by over temperature protection function
    Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered24
    Number of 802.3at PDs (Class 1, 2, 3) can be powered14
    Number of 802.3at PDs (Class 0, 4) can be powered14
    Management
    Management InterfaceWeb, PLANET Smart Discovery Lite
    PoE ManagementPower limit by consumption and classification mode
    PoE admin mode
    Per port power schedule
    Per port power enable/disable
    Power feeding priority
    Over temperature protection
    Current per port usage and status
    Total power consumption
    Management FeatureSetup of system/management functions
    Web firmware upgrade
    SNMP trap for alarm notification of events
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Standards ComplianceIEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3af Power over Ethernet
    RFC 768: UDP
    RFC 791: IP
    RFC 2068 HTTP
    RFC 1157: SNMP v1
    RFC 1902: SNMP v2c
    RFC 5424: Syslog
    Environments
    OperatingTemperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 90% (non-condensing)
    StorageTemperature: -10 ~ 70 degrees C
    Relative Humidity: 5 ~ 90% (non-condensing)
    Diğer Özellikler
    Stok KoduPL-POE-2400G
    MarkaPLANET
    Stok DurumuVar
    Garanti (Yıl)2
    4711213686115
