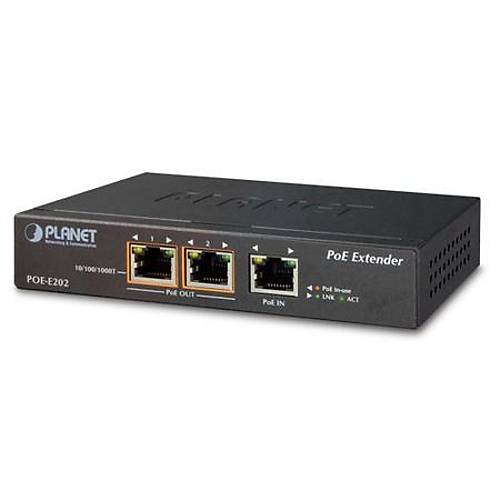

Planet PL-POE-E202 1 Port PoE+ 2 Port Gigabit PoE+ Sinyal Uzatma Cihaz

1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Sinyal Uzatma Cihazı
1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Extender


Fiziksel Port

- 1-port veri + güç girişi

- 2-port veri + güç çıkışı

• 3-port 10/100/1000BASE-T Gigabit RJ45 arayüz

Power over Ethernet

- IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD destekler

- PoE girişi 30.8 watt güç beslemesi yapar

- IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE destekler

- Maksimum 2 IEEE 802.3af/802.3at cihaza güç beslemesi yapabilir

- Çıkışlara bağlı cihazlara 25 watt güç beslemesi yapabilir

- Elektrikle beslenen cihazları (powered device (PD)) otomatik algılar

• 1-port veri + güç girişi
• 2-port veri + güç çıkışı
• PoE sinyalini ek olarak 100 metre ileriye taşır

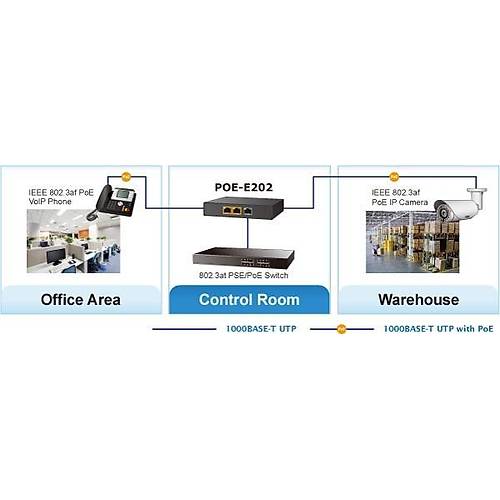

• Ethernet ve PoE güç sinyallerini uzaktaki cihazlara ulaştırır


Layer 2 Özellikler

• 10/100/1000Mbps auto-negotiation ve auto MDI/MDI-X özelliğine sahip
• 2K MAC addres kapasitesine sahip
• 10K iumbo paket desteği
• IEEE 802.1Q VLAN transparency
• Store-and-Forward mod destekler
• Full duplex çalışırken IEEE 802.3x akış kontrolü özelliği ve half duplex çalışırken backpressure özelliğine sahip
• Otomatik adres öğrenme ve adres aging özelliği
•  CSMA/CD protokolünü destekler


Şasi ve Kurulum

• Harici güç kablosu gerektirmez
• Metal şasi, kompakt, masaüstü boyut
• Duvara monte edilebilir, Tak & Çalıştır özelliği
• 0 ~ 50 derece C çalışma ısısına sahip



Interfaces
PoE IN	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “Data + DC power” in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT	2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC power” out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard	“PoE In” Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type	End-span (Type A)
PoE Power	“PoE In” Port 52~56V DC, max. 30.8 watts Per “PoE Out” Port 44~55V DC, max. 25 watts
Power Pin Assignment	“PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per “PoE Out” Port 1/2 (+), 3/6 (-)
Hardware Specifications
Data Rate	10/100/1000Mbps
MAC Address Table	2K
Data Buffer	2Mbits
Switch Architecture	Store-and-Forward
Switch Fabric	6Gbps
Switch Throughput	4.46Mpps @ 64 bytes
Jumbo Frame	10KB
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	“PoE In” Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)
Protection	ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD)
Enclosure	Metal
Installation	Wall mountable
Dimensions (W x D x H)	140 x 77 x 28 mm
Weight	234g
Power Requirements	IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption	1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE function) 36 watts/122.8BTU (Full loading with PoE function)
Network Cable	10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standard Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
