      Planet PL-VC-232G 1 Port Gigabit RJ45 toCoaxial Sinyal Çevirici


      Hardware Specifications
      TP interface1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
      VDSL Interface1 BNC female Ethernet over Coaxial

      Cabling
      Coaxial cable: 75 ohm
      RG-6/U cable, less than12Ω/1000 ft
      RG-59/U cable, less than 30Ω/1000 ft.

      Maximum Distance
      Max. 1400m with data transmission (4,593ft.)

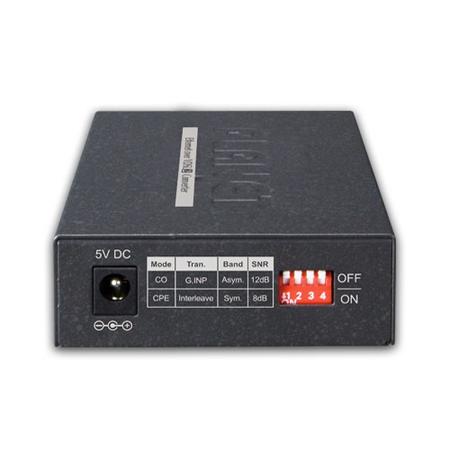

      FunctionalityDIP-1: Select CO or CPE mode
      DIP-2: Select G.INP or Interleaved mode
      DIP-3: Select Band Profile (Asymmetric or Symmetric)
      DIP-4: Select SNR of 12dB or 8dB
      Dimensions (W x D x H)70 x 97 x 26 mm
      Weight185g
      Power RequirementDC 5V, 2A external power
      LED IndicatorsPower: Green
      1000BASE-T LNK/ACT: Green
      VDSL: Green
      CO: Green
      CPE: Green
      HousingMetal
      Switch Specifications
      Switch Processing SchemeStore-and-Forward
      Address Table2K entries
      Flow ControlBack pressure for half duplex
      IEEE 802.3x pause frame for full duplex
      System Specifications
      VDSL Compliance
      • VDSL-DMT
      • ?ITU-T G.993.1 VDSL
        ?ITU-T G.993.1 VDSL
        ?ITU-T G.997.1
        ?ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
        ?ITU-T G.993.5 G. Vectoring
        ?ITU-T G.998
        ?G.INP
      Standards Conformance
      Standards ComplianceIEEE 802.3 Ethernet
      IEEE 802.3u Fast Ethernet
      IEEE 802.3ab Gigabit Ethernet
      IEEE 802.3x Full-duplex flow control
      IEEE 802.1p Class of Service
      ITU-T G.993.1 VDSL
      ITU-T G.997.1
      ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
      ITU-T G.993.5 G.Vectoring and G.INP
      ITU-T G.998
      Regulatory ComplianceFCC Part 15 Class A, CE
      Environment
      TemperatureOperating: 0~50 degrees C
      Storage: -10~70 degrees C
      HumidityOperating: 5~95% (non-condensing)
      Storage: 5~95% (non-condensing)
      Performance
      Coaxial PerformanceInterleave(Upstream/Downstream: Mbps)
      ?Asymmetric (8dB):
      ?200m ->88Mbps/168Mbps
      ?400m ->75Mbps/160Mbps
      ?600m ->59Mbps/129Mbps
      ?800m ->32Mbps/110Mbps

      ?Asymmetric (12dB):
      ?200m ->78Mbps/145Mbps
      ?400m ->69Mbps/137Mbps
      ?600m ->48Mbps/118Mbps
      ?800m ->26Mbps/94Mbps

      ?Symmetric (8dB):
      ?200m ->129Mbps/131Mbps
      ?400m ->117Mbps/122Mbps
      ?600m ->101Mbps/92Mbps
      ?800m ->62Mbps/73Mbps

      ?Symmetric (12dB):
      ?200m ->117Mbps/123Mbps
      ?400m ->102Mbps/102Mbps
      ?600m ->88Mbps/82Mbps
      ?800m ->47Mbps/56Mbps


      G.INP(Upstream/Downstream: Mbps)
      ?Asymmetric (8dB):
      ?200m ->95Mbps/200Mbps
      ?400m ->82Mbps/175Mbps
      ?600m ->59Mbps/151Mbps
      ?800m ->37Mbps/122Mbps

      ?Asymmetric (12dB):
      ?200m ->89Mbps/181Mbps
      ?400m ->71Mbps/156Mbps
      ?600m ->46Mbps/136Mbps
      ?800m ->30Mbps/102Mbps

      ?Symmetric (8dB):
      ?200m ->147Mbps/147Mbps
      ?400m ->132Mbps/135Mbps
      ?600m ->108Mbps/104Mbps
      ?800m ->76Mbps/78Mbps

      ?Symmetric (12dB):
      ?200m ->138Mbps/143Mbps
      ?400m ->116Mbps/120Mbps
      ?600m ->91Mbps/89Mbps
      ?800m ->58Mbps/60Mbps


      Note: As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environmental factors.

      Diğer Özellikler
      Stok KoduPL-VC-232G
      MarkaPLANET
      Stok DurumuVar
      Garanti (Yıl)2
      4711605283182
