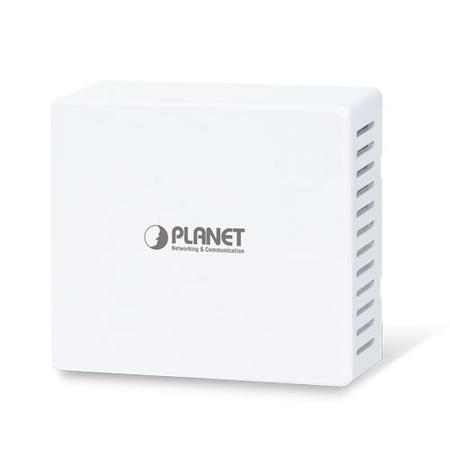

      Planet PL-WDAP-W1200E 1200Mbps Wave Dual Band 3 Port Gigabit PoE Access Point


      Hardware Specifications
      InterfacesLAN
      2 x 10/100/1000BASE-TX RJ45 port
      Auto-negotiation and auto MDI/MDI-X

      PoE Port
      1 x 10/100/1000Mbps auto MDI/MDI-X RJ45 port (rear panel)
      ? IEEE 802.3af/at PD port

      RJ11 Port
      Six-position four-conductor (6P4C) modular jack
      AntennasGain: 4 x 2dBi antenna
      ButtonReset button (Press over 10seconds to reset the device to the factory default)
      LED IndicatorsLAN1/LAN2/WAN/SYS
      Dimensions (W x D x H)86 x 45 x 86 mm
      Weight168 ± 5g
      Power Requirements48V DC IN, 0.5A, IEEE 802.3af/at PoE+
      Power Consumption< 8W
      MountingIn-wall mount
      Wireless Interface Specifications
      StandardIEEE 802.11ac
      IEEE 802.11n
      IEEE 802.11a
      IEEE 802.11b
      IEEE 802.11g
      IEEE 802.11i
      IEEE 802.3 10BASE-T
      IEEE 802.3u 100BASE-TX
      IEEE 802.3x flow control
      Media Access ControlCSMA/CA
      Data Modulation802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
      802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
      802.11b: DSSS (DBPSK / DQPSK / CCK)
      Band Mode2.4G / 5G concurrent mode
      Frequency Range2.4GHz:
      FCC: 2.412~2.462GHz
      ETSI: 2.412~2.472GHz

      5GHz:
      FCC: 5.180~5.240GHz, 5.745~5.825GHz
      ETSI: 5.180~5.700GHz
      Operating ChannelsFCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
      ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)
      5GHz channel list will vary in different countries according to their regulations.
      RF Power<20dBm (EIRP)
      Receive Sensitivity
      Network ModeData RateReceive Sensitivity (dBm)
      2.4GHz
      802.11b1Mbps-88
      11Mbps-85
      802.11g6Mbps-88
      54Mbps-68
      802.11n HT20MCS0/MCS8-95
      MCS7/MCS15-77
      802.11n HT40MCS0/MCS8-93
      MCS7/MCS15-75
      5GHz
      802.11a6Mbps-92
      54Mbps-75
      802.11n HT20MCS0/MCS8-91
      MCS7/MCS15-72
      802.11n HT40MCS0/MCS8-88
      MCS7/MCS15-70
      802.11ac VHT20MCS0-92
      MCS8-70
      802.11ac VHT40MCS0-89
      MCS9-65
      802.11ac VHT80MCS0-87
      MCS9-61
      Software Features
      LANStatic IP/DHCP Client
      Supports IP-MAC binding
      WAN
      • Static IP
      • Dynamic IP
      • PPPoE
      Wireless Mode
      • Access Point
      • Gateway
      • WISP
      • Repeater
      • Super WDS
      Channel Width20MHz, 40MHz, 80MHz
      Encryption Security64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
      Wireless SecurityEnable/Disable SSID Broadcast
      Wireless – filtering of max. 32 MAC addresses
      User Isolation
      Max. SSIDs8 ( 4 per radio)
      Max. Clients128 (100 is suggested, depending on usage)
      Max. WDS Peers4
      Wireless QoSSupports Wi-Fi Multimedia (WMM)
      Wireless AdvancedAuto channel selection
      5-level transmit power control (100%, 75%, 50%, 25%, 12.5%)
      Client limit control, coverage threshold
      Wi-Fi channel analysis chart
      Fast Roaming
      Status MonitoringDevice status, wireless client list
      PLANET Smart Discovery
      DHCP client table
      System Log supports remote syslog server
      VLANIEEE 802.1Q VLAN (VID: 3~4094)
      SSID-to-VLAN mapping to up to 4 SSIDs
      Self-healingSupports auto reboot settings per day/hour
      ManagementRemote management through PLANET DDNS/Easy DDNS
      Configuration backup and restoration
      Supports UPnP
      Supports IGMP Proxy
      Supports PPTP/L2TP/IPSec VPN Pass-through
      SNMP v1/v2c/v3 support, MIB I/II, Private MIB
      Central Management*Applicable controllers: NMS-500/NMS-1000V, WS-1232P, WS-2864PVR
      *The feature will be supported through firmware/system upgrade.
      Environment & Certification
      TemperatureOperating: -20 ~ 55 degrees C
      Storage: -40 ~ 70 degrees C
      HumidityOperating: 10 ~ 90% (non-condensing)
      Storage: 5 ~ 95% (non-condensing)
      RegulatoryCE, RoHS2


      Diğer Özellikler
      Stok KoduPL-WDAP-W1200E
      MarkaPLANET
      Stok DurumuVar
      Garanti (Yıl)2
