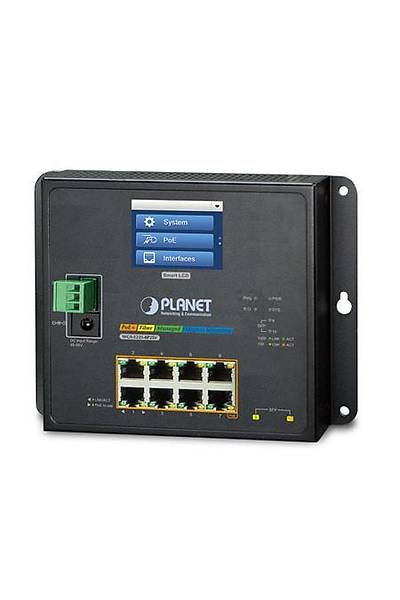

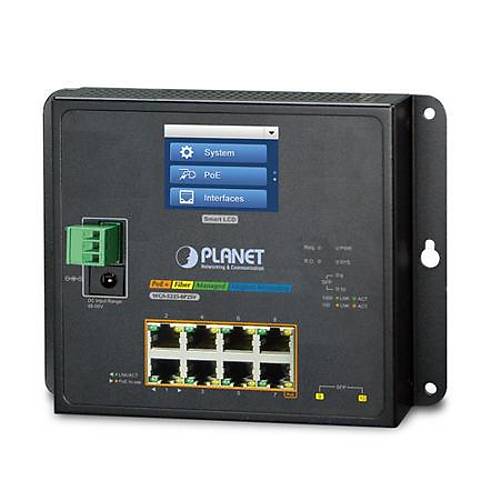

      Planet PL-WGS-5225-8P2SV 8 Port Gigabit PoE 2 Port SFP 240W L2+ Endüstriyel Yönetilebilir PoE Switch

      Görsel 1
      Görsel 2
      Görsel 3
      Görsel 4
      Para_Puan : 43.457
      Fiyat:
      5.127,88 TL
      Havale / EFT:
      4.999,68 TL
      1

      Endüstriyel Duvar Tip L2+ Yönetilebilir Switch (Industrial Wall-mount L2+ Managed Switch)
      8-Port 10/100/1000T IEEE 802.3at/af PoE+ Injector Port (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 Watt)
      2-Port 1000Base-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumlu
      L2+
      L3 Static Routing
      E.R.P.S. Ring
      LCD Dokunmatik Ekran (LCD Touch Screen)
      PTP/Modbus TCP
      ONVIF Tespiti
      Konsol port
      IP30, -40~75 Derece C

      Physical Port
      • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector

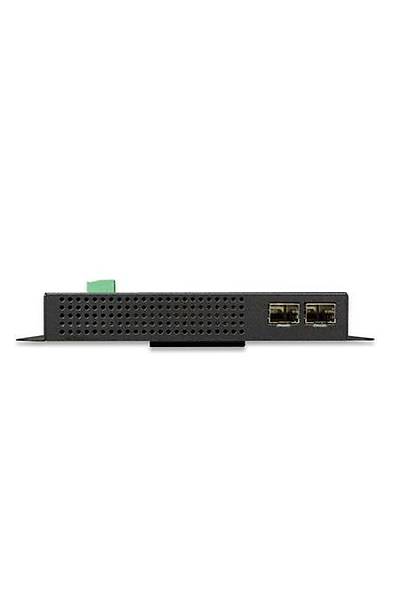

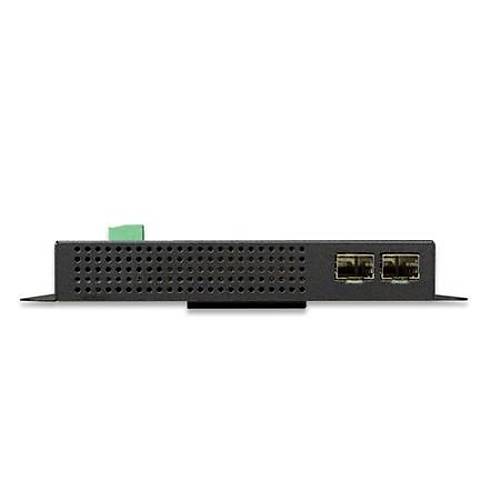

      • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

      Power over Ethernet
      • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
      • Up to 8 IEEE 802.3af/802.3at devices powered
      • Supports PoE power up to 36 watts for each PoE port
      • Auto detects powered device (PD)
      • Circuit protection prevents power interference between ports
      • Remote power feeding up to 100m
      • PoE management features
      • - Total PoE power budget control
        - Per port PoE function enable/disable
        - PoE admin-mode control
        - PoE port power feeding priority
        - Per PoE port power limit
        - PD classification detection
      • Intelligent PoE features
      • - Temperature threshold control
        - PoE usage threshold control
        - PD alive check
        - PoE schedule

      Industrial Case and Installation
      • Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
      • IP30 metal case
      • Supports -20 to 70 degrees C operating temperature
      • Supports ESD 6KV DC Ethernet protection
      • Dual power input design
      • - 48V~56V DC wide power input with polarity reverse protect function
        - 3-pin terminal block or DC jack connector

      Layer 2 Features

      • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
      • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
      • Storm Control support
      • -Broadcast/Multicast/Unicast

      • Supports VLAN
      • - IEEE 802.1Q tagged VLAN
        - Up to 255 VLANs groups, out of 4094 VLAN IDs
        - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
        - Private VLAN Edge (PVE)
        - Protocol-based VLAN
        - MAC-based VLAN
        - Voice VLAN

      • Supports Spanning Tree Protocol
      • - IEEE 802.1D Spanning Tree Protocol (STP)
        - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
        - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
        - BPDU Guard

      • Supports Link Aggregation
      • - 802.3ad Link Aggregation Control Protocol (LACP)
        - Cisco ether-channel (static trunk)
        - Maximum 2 trunk groups with 2 ports per trunk group
        - Up to 2Gbps bandwidth (duplex mode)

      • Provides port mirror (1-to-1)
      • Port mirroring to monitor the incoming or outgoing traffic on a particular port
      • Loop protection to avoid broadcast loops
      • Supports ERPS (Ethernet Ring Protection Switching)

      Layer 3 IP Routing Features

      • Supports maximum 32 static routes and route summarization

      Quality of Service

      • Ingress Shaper and Egress Rate Limit per port bandwidth control
      • 8 priority queues on all switch ports
      • Traffic classification
      • - IEEE 802.1p CoS
        - IP TOS/DSCP/IP precedence
        - IP TCP/UDP port number
        - Typical network application

      • Strict priority and Weighted Round Robin (WRR) CoS policies
      • Supports QoS and In/Out bandwidth control on each port
      • Traffic-policing on the switch port
      • DSCP remarking

      Multicast

      • Supports IGMP snooping v1, v2 and v3
      • Supports MLD snooping v1 and v2
      • Querier mode support
      • IGMP snooping port filtering
      • MLD snooping port filtering
      • MVR (Multicast VLAN Registration)

      Security

      • IEEE 802.1x Port-based/MAC-based network access authentication
      • Built-in RADIUS client to cooperate with the RADIUS servers
      • TACACS+ login users access authentication
      • RADIUS/TACACS+ users access authentication
      • IP-based Access Control List (ACL)
      • MAC-based Access Control List
      • Source MAC/IP address binding
      • DHCP snooping to filter distrusted DHCP messages
      • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
      • IP Source Guard prevents IP spoofing attacks
      • IP address access management to prevent unauthorized intruder

      Management

      • Switch Management Interfaces
      • - Telnet Command Line Interface
        - Web switch management
        - SNMP v1 and v2c switch management
        - SSH/SSL and SNMP v3 secure access
        - 2.4-inch color LCD touch screen

      • Four RMON groups (history, statistics, alarms, and events)
      • IPv6 IP address/NTP/DNS management
      • Built-in Trivial File Transfer Protocol (TFTP) client
      • BOOTP and DHCP for IP address assignment
      • Firmware upload/download via HTTP/TFTP
      • DHCP Relay and DHCP Option 82
      • User Privilege levels control
      • Network Time Protocol (NTP)
      • Link Layer Discovery Protocol (LLDP)
      • SFP-DDM (Digital Diagnostic Monitor)
      • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
      • Reset button for system reboot or reset to factory default
      • PLANET Smart Discovery Utility for deployment management
      •
        Hardware Specifications
        Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
        SFP/mini-GBIC Slots2 1000BASE-SX/LX/BX SFP interfaces (Port-9 to Port-10)
        Compatible with 100BASE-FX SFP
        PoE Injector Port8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
        Switch ArchitectureStore-and-Forward
        Switch Fabric20Gbps/non-blocking
        Throughput (packet per second)14.88Mpps@ 64 bytes packet
        Address Table8K entries, automatic source address learning and aging
        Shared Data Buffer4Mbits
        Flow ControlIEEE 802.3x pause frame for full duplex
        Back pressure for half duplex
        Jumbo Frame9Kbytes
        Reset Button< 5 sec: System reboot
        > 5 sec: Factory default
        ESD Protection6KV DC
        EnclosureIP30 metal case

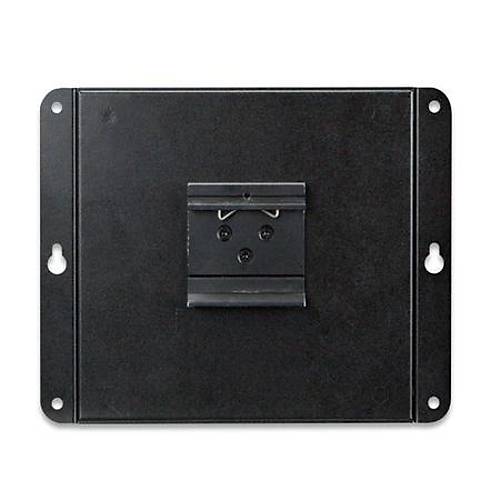

        InstallationDIN rail kit and wall-mount
        Connector
        Diğer Özellikler
        Stok KoduPL-WGS-5225-8P2SV
        MarkaPLANET
        Stok DurumuVar
        Garanti (Yıl)2
        4711605283243
