      Planet PL-WGS-818HP 8 Port Gigabit PoE+ 120w Endüstriel PoE Switch

      Görsel 1
      Görsel 2
      Para_Puan : 28.800
      Fiyat:
      3.398,40 TL
      Havale / EFT:
      3.313,44 TL
      1

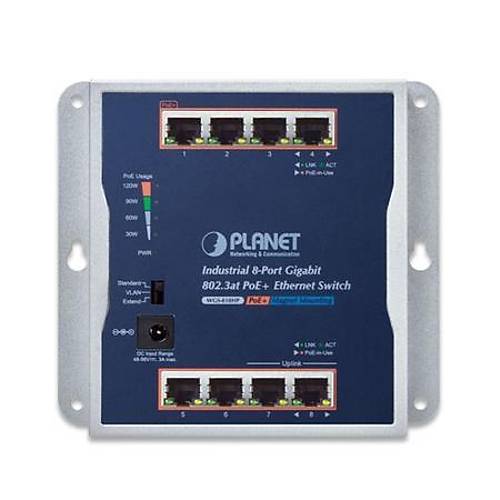

      Planet PL-WGS-818HP 8 Port Gigabit PoE+ Endüstriel PoE Switch



      Industrial 8-Port 10/100/1000T 802.3at PoE+ Wall-mounted Gigabit Ethernet Switch

      Hardware SpecificationsNetwork Connector8-Port RJ45 for 10/100/1000BASE-TPoE Inject Port8-Port with 802.3at PoE+ injector function (Port-1 to Port-8)Switch ArchitectureStore and forwardMAC Address Table4K MAC address table with auto learning functionSwitch Fabric16Gbps / non-blockingSwitch Throughput11.9Mpps@64BytesJumbo Frame9KbytesFlow ControlIEEE 802.3x pause frame for full duplex
      Back pressure for half duplexLED IndicatorsPower LED:
      ?Power (Green)
      PoE Power Usage LED:
      ?30W, 60W, 90W, 120W (Amber)
      PoE Port:
      ?PoE-in-Use (Amber)
      ?LNK/ACT (Green)ESD Protection4KV DCDIP SwitchSelectable operation modes:
      ? Standard: IEEE 802.3at PoE+ transmission distance of 100m
      ? VLAN: Port-based VLAN
      ? Extend: 25-watt PoE transmission distance of 250m at speed of 10MbpsConnectorDC power jack with 2.0mm central polePower Requirements48~56V DC, 3A (max.)Power Consumption137 watts / 467BTUEnclosureIP30 metalDimensions (W x D x H)148 x 25 x 134 mmWeight474gInstallationFixed wall mounting, magnetic wall mounting and DIN-rail mountingPower over EthernetPoE StandardIEEE 802.3at Power over Ethernet Plus PSEPoE Power Supply TypeEnd-spanPoE Power OutputIEEE 802.3af Standard
      ?- Per port 48V~56V DC (depending on the power supply), max. 15.4 watts
      IEEE 802.3at Standard
      ?- Per port 50V~56V DC (depending on the power supply), max. 30 wattsPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget120 watts (depending on power input)Max. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs4Standard ConformanceStandard ComplianceIEEE 802.3 Ethernet
      IEEE 802.3u Fast Ethernet
      IEEE 802.3ab Gigabit Ethernet
      IEEE 802.3x Flow Control
      IEEE 802.3af Power over Ethernet
      IEEE 802.3at Power over Ethernet plus
      IEEE 802.3z Energy Efficient EthernetRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (Free fall)
      IEC 60068-2-27 (Shock)
      IEC 60068-2-6 (Vibration)EnvironmentOperatingTemperature: -20 ~ 60 degrees C
      Relative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -20 ~ 70 degrees C
      Relative Humidity: 5 ~ 95% (non-condensing)
      Diğer Özellikler
      Stok KoduPL-WGS-818HP
      MarkaPLANET
      Stok DurumuVar
      Garanti (Yıl)2
      4711605285063
