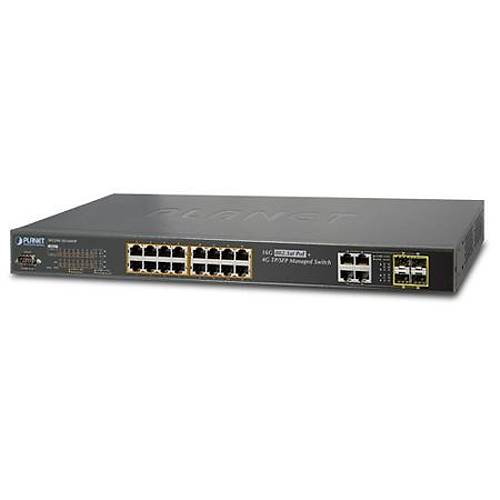

L2+ Yönetilebilir Switch (L2+ Managed Switch)
16-Port 10/100/1000Base-T IEEE 802.3 at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 230 watt)
4-Port 10/100/1000Mbps TP ve SFP (Port-17 ile Port-20 arası paylaşımlı) (1000BASE-SX/LX SFP/mini-GBIC ve 100Base-FX SFP uyumlu)
1 x Konsol port
Physical Port
- 16-port 10/100/1000BASE-T RJ45 copper
- 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(mini-GBIC) supports 100/1000Mbps dual mode, shared with Port-17 to Port-20
- RS232 DB9 console interface for basic management and setup
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus End-span PSE
- Complies with IEEE 802.3af Power over Ethernet End-span PSE
- Up to 16 ports of IEEE 802.3at/802.3af devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Management
- - Total PoE power budget control
- - Per port PoE function enable/disable
- - PoE Port Power feeding priority
- - Per PoE port power limit
- - PD classification detection
- - PD power recycling schedule
Layer 2 Features
- Storm Control support
- - Broadcast / Multicast / Unknown unicast
- Supports VLAN
- - IEEE 802.1Q tagged VLAN
- - Up to 255 VLANs groups, out of 4094 VLAN IDs
- - Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
- - Private VLAN Edge (PVE)
- - GVRP (GARP VLAN Registration Protocol)
- Supports Spanning Tree Protocol
- - IEEE 802.1D Spanning Tree Protocol (STP)
- - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- Supports Link Aggregation
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (static trunk)
- - Maximum 10 trunk groups, up to 4 ports per trunk group
- - Up to 8Gbps bandwidth (full duplex mode)
- Provides port mirroring (many-to-1)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
- Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- - IEEE 802.1p CoS
- - TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- - Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IPv4 IGMP Snooping v1, v2 and v3
- Supports IPv6 MLD Snooping v1 and v2
- Querier mode support
- IPv4 IGMP Snooping port filtering
- IPv6 MLD Snooping port filtering
- Multicast VLAN Registration (MVR) support
Security
- Authentication
- - IEEE 802.1x Port-based / MAC-based network access authentication
- - Built-in RADIUS client to co-operate with the RADIUS servers
- - TACACS+ login users access authentication
- - RADIUS / TACACS+ users access authentication
- Access Control List
- - IP-based Access Control List (ACL)
- - MAC-based Access Control List
- Source MAC / IP address binding
- DHCP Snooping to filter un-trusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- Auto DoS rule to defend DoS attack
- IP address access management to prevent unauthorized intruder
Management
- IPv4 and IPv6 dual stack management
- Switch Management Interfaces
- - Console / Telnet Command Line Interface
- - SNMP v1, v2c, and v3 switch management
- - SSH, TLS and SSL secure access
- IPv6 IP Address, NTP and DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- - Firmware upload/download via HTTP/TFTP
- - Reset button for system reboot or reset to factory default
- DHCP Relay
- DHCP Option82
- DHCP Server
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- Network Diagnostic
- - ICMPv6 / ICMPv4 Remote Ping
- - Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- SMTP / Syslog remote alarm
- Four RMON groups (history, statistics, alarms and events)
- SNMP trap for interface Link Up and Link Down notification
- System Log
- PLANET Smart Discovery Utility for deploy management
Diğer Özellikler |
Stok Kodu | PL-WGSW-20160HP |
Marka | PLANET |
Stok Durumu | Var |
Garanti (Yıl) | 2 |
4711213689215
