      Planet PL-WNAP-6350 2.4GHZ 300Mbps Outdoor Access Point

      Görsel 1
      Para_Puan : 29.443
      Fiyat:
      3.474,24 TL
      Havale / EFT:
      3.387,38 TL
      1

      2.4GHz 300Mbps 802.11n Wireless Outdoor Access Point, 360 derece kapsama alanı (Entegre 2 x N-tip Dişi Anten Konnektör)

      High Power Outdoor Wireless Coverage
      PLANET has come out with the latest high power outdoor wireless LAN solution – the WNAP-6350 300Mbps PoE wireless outdoor AP. It provides higher transmit power, better performance, wider coverage and more stable connection than standard wireless outdoor AP. As an IEEE 802.11b/g/n compliant wireless device, the WNAP-6350 is able to give stable and efficient wireless performance for long distance application. Adopting IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-6350 is possible to deliver six times faster data rate up to 300Mbps than the normal 802.11g wireless device. It also features adjustable output power up to 500mW to extend broader coverage in outdoor long range application.

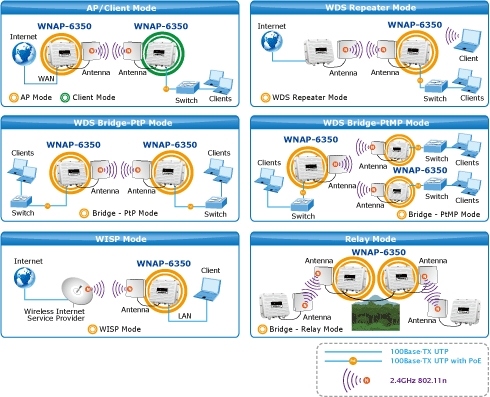

      Multiple Operating and Wireless Modes
      The WNAP-6350 supports multiple types of wireless communication connectivity (AP, Client CPE, WDS PtP, WDS PtMP, Repeater) allowing to meet various application requirements and thus it gives users more comprehensive experience when accessing through Wireless LAN. It helps users to easily build a wireless network and extend the wireless range of the existing wireless network.



      The WNAP-6350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.






      Advanced Security and Management
      In terms of security, besides 64/128- bit WEP encryption, the WNAP-6350 is integrated with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To meet the demand for enterprise and various applications, the WNAP-6350 enhances security and management features such as multiple SSIDs support.



      Perfect Solution for Outdoor Environment
      The WNAP-6350 is perfectly suitable for outdoor environments and exposed locations. With IP67 and aluminum rugged housing, the WNAP-6350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-6350 is rated to operate at the temperature from -30 to 75 degrees C and thus it can operate more stably than general outdoor equipment. It is the best way to use the WNAP-6350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.





      Flexible Deployment with PoE Feature
      Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-6350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place that is difficult to reach. Furthermore, the WNAP-6350 is also suitable to be integrated with PoE Solar Power System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and frees you from worry about power locations.





      Easy Installation & Management
      With user-friendly Web UI and step by step Setup Wizard, the WNAP-6350 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-6350 is convenient to be managed and configured remotely.





      Industrial Compliant Wireless LAN & LAN

      • Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate
      • Backward compatible with 802.11b/g standard
      • Equipped with 10/100Mbps RJ-45 Ports for LAN & WAN, Auto MDI / MDI-X supported

      Fixed-network Broadband Router

      • Supported connection types: Dynamic IP / Static IP / PPPoE / PPTP / L2TP / IPSec
      • Supports Virtual Server, DMZ for various networking applications
      • Supports DHCP Server, UPnP, Dynamic DNS


      RF Interface Characteristics

      • 2 built-in N-type female antenna connectors
      • High Output Power up to 500mW with multiple adjustable transmit power control


      Outdoor Environmental Characteristics

      • Aluminum Housing, IP67 Protection
      • IEEE 802.3af/at Power over Ethernet design
      • Operating Temperature: -30~75 Degree C


      Multiple Operation & Wireless Mode

      • Multiple Operation Modes: Bridge, Gateway, WISP
      • Multiple Wireless Modes: AP, Client CPE (WISP), WDS PtP, WDS PtMP, Repeater
      • Supports Dual-SSID allowing users to access different networks through one single AP
      • Supports WMM (Wi-Fi Multimedia)


      Secure Network Connection

      • Supports Software Wi-Fi Protected Setup (WPS)
      • Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES), and 802.1x authentication
      • Supports NAT firewall features, with SPI function to protect against DoS attacks
      • Supports IP / Protocol-Based access control and MAC filtering



      Easy Installation & Management

      • Web-Based UI and Quick Setup Wizard for easy configuration
      • Remote Management allows configuration from a remote site
      • SNMP-Based management interface
      • System status monitoring includes DHCP Client, System Log




      Hardware Specifications
      StandardIEEE 802.11b/g/n Wireless LAN
      IEEE 802.3 10Base-T Ethernet
      IEEE 802.3u 100Base-TX Ethernet
      IEEE 802.3x Flow Control
      Memory32 Mbytes DDR SDRAM
      8 Mbytes Flash
      PoE802.3 af/at PoE
      InterfaceWireless IEEE 802.11b/g/n, 2T2R
      LAN: 1 x 10/100Base-TX, Auto-MDI / MDIX
      WAN: 1 x 10/100Base-TX, Auto-MDI / MDIX
      AntennaN-Type female connectors x 2
      Wireless RF Specifications
      Data RateIEEE 802.11b: 11, 5.5, 2 and 1Mbps
      IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
      IEEE 802.11n (20MHz): up to 150Mbps
      IEEE 802.11n (40MHz): up to 300Mbp
      Media Access ControlCSMA / CA
      ModulationTransmission / Emission Type: OFDM
      Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
      Frequency Band2.412GHz ~ 2.484GHz
      Operating ChannelAmerica/ FCC: 2.414~2.462GHz (11 Channels)
      Europe/ ETSI: 2.412~2.472GHz (13 Channels)
      Japan/ TELEC: 2.412~2.484GHz (14 Channels)
      RF Output PowerIEEE 802.11b/g: 29 ± 1dBm
      IEEE 802.11n: 25 ± 1.5dBm
      Receiver SensitivityIEEE 802.11b: -95/ -94/ -92/ -90dBm (1/ 2/ 5.5/ 11Mbps)
      IEEE 802.11g: -90/ -82/ -80/ -75dBm (6/ 24/ 36/ 54Mbps)
      IEEE 802.11n: -91/ -83/ -74/ -89/ -80/ -72dBm (MCS 0/ 3/ 6/ 9/ 12/ 15)
      Output Power Control3~29dBm
      Power RequirementsLAN: 48V DC/0.4A; 802.3 af/at PoE
      Software Features
      LANBuilt-in DHCP server supporting static IP address distributing
      Supports 802.1d STP (Spanning Tree)
      WAN
      • Static IP
      • Dynamic IP
      • PPPoE
      • PPTP
      • L2TP
      • IPSec
      Operating Mode
      • Bridge
      • Gateway
      • WISP
      FirewallNAT firewall with SPI (Stateful Packet Inspection)
      Built-in NAT server supporting Virtual Server and DMZ
      Built-in firewall with Port / IP address / MAC / URL filtering
      Wireless Mode
      • AP
      • Client
      • WDS PTP
      • WDS PTMP
      • WDS Repeater (AP+WDS)
      Channel Width20MHz / 40MHz
      Wireless IsolationEnables isolation of each connected wireless client from communicating with each other mutually.
      Encryption Type64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
      Wireless SecurityProvides wireless LAN ACL (Access Control List) filtering
      Wireless MAC address filtering
      Supports WPS (Wi-Fi Protected Setup )
      Enable / Disable SSID Broadcast
      Multiple SSIDUp to 2
      Max. Wireless Client40
      Max. WDS AP8
      Max. Wired Client60
      WMMSupports Wi-Fi Multimedia
      QoSSupports Quality of Service for bandwidth control
      NTPNetwork Time Management
      ManagementWeb UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP
      Diagnostic toolSystem Log, Ping Watchdog
      Mechanical & Power
      IP RateIP67
      MaterialAluminum
      Dimension (W x D x H)320 x 27.5 x 320 mm
      Weight2.4kg
      InstallationPole mounting or Wall mounting
      Power RequirementsAP: IEEE 802.3af/at PoE / 48VDC input (PoE Injector included)
      PoE Injector: 100~240VAC
      Power Consumption7.68W
      Environment & Certification
      Operation Temperature-30~75 Degree C
      Operating Humidity10~95% non-condensing
      IP LevelIP67
      RegulatoryCE / RoHS
      Software Features
      LANBuilt-in DHCP server supports static IP address distributing
      Supports 802.1d STP (Spanning Tree)
      WANStatic IP
      Dynamic IP
      PPPoE
      PPTP
      L2TP
      IPSec
      Operating ModesBridge
      Gateway
      WISP
      FirewallNAT firewall with SPI (Stateful Packet Inspection)
      Built-in NAT server supports Virtual Server and DMZ
      Built-in firewall with Port / IP address / MAC / URL filtering
      Wireless ModeAP
      Client
      WDS PTP
      WDS PTMP
      WDS Repeater (AP+WDS)
      Channel Width20MHz / 40MHz
      Wireless IsolationEnables it to isolate each connected wireless client so as to unable them to access mutually.
      Encryption Type64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
      Wireless SecurityProvides wireless LAN ACL (Access Control List) filtering
      Wireless MAC address filtering
      Supports WPS (WIFI Protected Setup)
      Enable / Disable SSID Broadcast
      Multiple SSIDUp to 2
      Max. Wireless Client40
      Max. WDS AP8
      Max. Wired Client60
      WMMSupports Wi-Fi Multimedia
      QoSSupports Quality of Service for bandwidth control
      NTPNetwork Time Management
      ManagementWeb UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP
      Diagnostic toolSystem Log, Ping Watchdog
      Accessory
      Standard Accessories
      • 48VDC IEEE 802.3af/at PoE injector & Power cord x 1
      • Mounting Kit x 1
      • Waterproof RJ-45 Connector Kit x 2
      • Quick Installation Guide x 1
      • CD (User’s Manual, Quick Installation Guide) x 1
