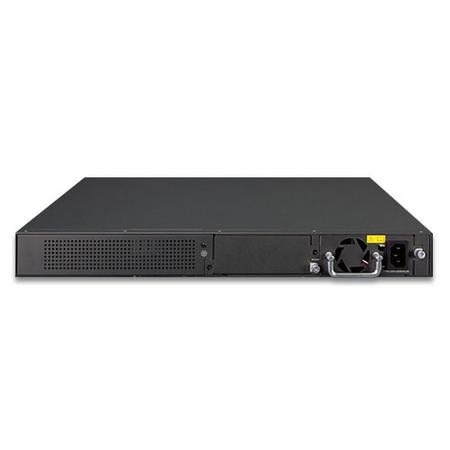

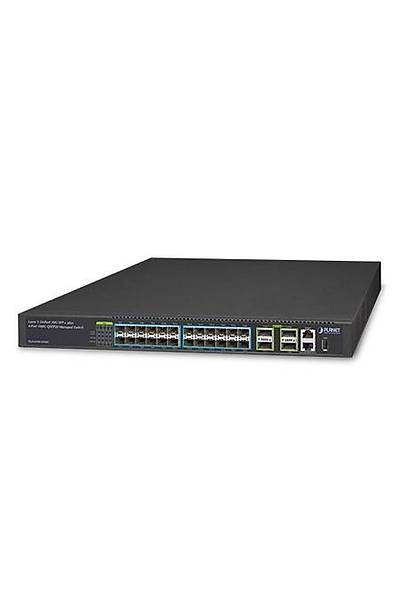

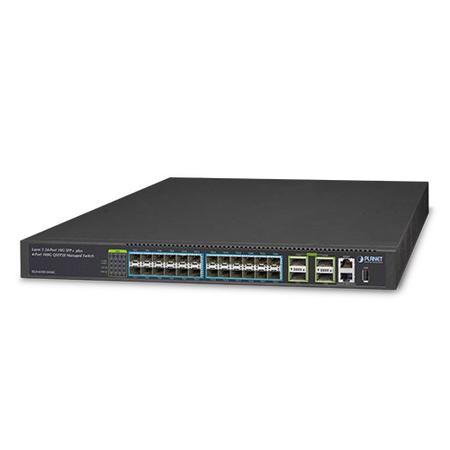

    • Planet PL-XGS-6350-24X4C 24 Port 10Gbase-SR/LR 4 Port 100G QSFP28 1 Port Gigabit L3 Yönetilebilir Switch

      Görsel 1
      Görsel 2
      Görsel 3
      Para_Puan : 476.125
      57.134,94 TL
      Havale / EFT:
      55.992,24 TL
      Layer 3 Managed Switch
      24 x 10GBASE-SR/LR SFP+ yuva (1000BASE-SX/LX/BX SFP uyumlu)
      4 x 100G QSFP28 yuva, 100/40 Gigabit Ethernet destekler, 4 x 10 Gigabit Ethernet mod
      1 x 10/100/1000Base-T RJ45 konsol port
      1 x RJ45 <-> DB9 seri port
      1 x USB 2.0 Switch

      Physical Ports

      • 24 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
      • 4 QSFP28 slots, each supports native 100 Gigabit Ethernet, 40G and 4 x 10 Gigabit Ethernet modes
      • RJ45 to DB9 console interface for switch basic management and setup


      IP Routing Features

      • Supports maximum 128 static routes and route summarization
      • Supports dynamic routing protocol: RIP and OSPF


      Layer 2 Features

      • Auto-MDI/MDI-X detection on each RJ45 port
      • Prevents packet loss flow control
        • IEEE 802.3x pause frame flow control in full-duplex mode
        • Back-pressure flow control in half-duplex mode
      • High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
      • 32KC MAC address table, automatic source address learning and aging
      • Supports VLAN
        • IEEE 802.1Q tag-based VLAN
        • GVRP for dynamic VLAN management
        • Up to 4094 active VLANs
        • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
        • Private VLAN Edge (PVE) supported
        • GVRP protocol for Management VLAN
        • Protocol-based VLAN
        • MAC-based VLAN
      • Supports Link Aggregation
        • Maximum 32 trunk groups with up to 8 ports per trunk group
        • IEEE 802.3ad LACP (Link Aggregation Control Protocol)
        • Cisco ether-channel (static trunk)
      • Supports Spanning Tree Protocol
        • STP, IEEE 802.1D (Classic Spanning Tree Protocol)
        • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
        • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
        • BPDU & root guard
      • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
      • Provides port mirror (many-to-1)


      Quality of Service

      • 8 priority queues on all switch ports
      • Supports strict priority and WRR (Weighted Round Robin) CoS policies
      • Traffic classification
        • IEEE 802.1p CoS/ToS
        • IPv4/IPv6 DSCP
        • Port-based WRR
      • Strict priority and WRR CoS policies



      • Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping
      • Querier mode supports
      • Supports Multicast VLAN Register (MVR)



      • IEEE 802.1x port-based network access authentication
      • MAC-based network access authentication
      • Built-in RADIUS client to co-operate with the RADIUS servers for IPv4 and IPv6
      • TACACS+ login users access authentication
      • IP-based Access Control List (ACL)
      • MAC-based Access Control List
      • Supports DHCP snooping
      • Supports ARP inspection
      • IP Source Guard prevents IP spoofing attacks
      • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding



      • Management IP for IPv4 and IPv6
      • Switch Management Interface
        • Console/Telnet Command Line Interface
        • Web switch management
        • SNMP v1, v2c and v3 switch management
        • SSH/SSL secure access
      • BOOTP and DHCP for IP address assignment
      • Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
      • SNTP (Simple Network Time Protocol) for IPv4 and IPv6
      • User privilege levels control
      • Syslog server for IPv4 and IPv6
      • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
      • Supports ping, trace route function for IPv4 and IPv6


      Hardware Specifications
      QSFP28 Slots4, each supports native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes
      SFP+ Slots24 10GBASE-SR/LR SFP+ interfaces
      Compatible with 1000BASE-SX/LX/BX SFP transceiver
      MGMT1 x 10/100/1000Base-T RJ45 port
      Console1 x RJ45-to-DB9 serial port (9600, 8, N, 1)
      USB1 x USB 2.0
      Switch ArchitectureStore-and-forward
      Switch Capacity800Gbps/non-blocking
      Switch Throughput960Mpps
      Address Table32K MAC address table with auto learning function
      Shared Data Buffer4MB
      Flow ControlBack pressure for half duplex
      IEEE 802.3x pause frame for full duplex
      Jumbo Frame9KB
      LED IndicatorSystem:
      PWR, SYS
      40G/100G QSFP Port: LNK/ACT
      Dimensions (W x D x H)442.5 x 364 x 44 mm, 1U height
      Power Consumption75 watts/210 BTU (maximum)
      Power RequirementsAC 100~240V, 50/60Hz
      Management Function
      System ConfigurationConsole; Telnet; SSH; SSL; Web browser; SNMP v1, v2c and v3
      ManagementSupports both IPv4 and IPv6 Protocols
      Supports the user IP security inspection for IPv4/IPv6 SNMP
      Supports MIB and TRAP
      Supports IPv4/IPv6 TFTP
      Supports IPv4/IPv6 NTP
      Supports RMON 1, 2, 3, 9 groups
      Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
      Supports IPv4/IPv6 SSH and SSL
      The right configuration for users to adopt RADIUS server’s shell management
      Supports CLI, console, Telnet
      Supports SNMPv1, v2c and v3
      Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area
      Supports syslog server for IPv4 and IPv6
      Supports TACACS+
      Layer 3 Function
      Routing ProtocolStatic routing, RIP and OSPF
      Routing Table16K
      DHCPDHCP client
      DHCP server, default route
      DHCP relay
      VRRPConfigure VRRP in interface VLAN;
      VRRP priority;
      VRRP standby;
      VRRP track
      Load BalancingUse of equivalent routing, the correct load balancing function (by flow)
      Layer 2 Function
      Port ConfigurationPort disable/enable
      Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
      Flow control disable/enable
      Bandwidth control on each port
      Port loopback detect
      Port StatusDisplay each port’s speed duplex mode, link status, flow control status and
      auto negotiation status
      VLAN802.1Q tag-based VLAN, up to 4K VLAN entries
      802.1ad Q-in-Q (VLAN stacking)
      GVRP for VLAN management
      Private VLAN Edge (PVE) supported
      Protocol-based VLAN
      MAC-based VLAN
      IP subnet VLAN
      Bandwidth ControlTX/RX/both
      Link AggregationIEEE 802.3ad LACP/static trunk
      Supports 32 groups with 8 ports per trunk group
      QoS8 priority queues on all switch ports
      Supports strict priority and Weighted Round Robin (WRR) CoS policies
      Traffic classification:
      - IEEE 802.1p CoS/ToS
      - IPv4/IPv6 DSCP
      - Port-based WRR
      MulticastIGMP v1/v2/v3 snooping
      Querier mode support
      MLD v1/v2 snooping
      Querier mode support
      Multicast VLAN Register (MVR)
      Access Control ListSupports Standard and Expanded ACL
      IP-based ACL/MAC-based ACL
      Time-based ACL
      Up to 1K entries
      Bandwidth ControlAt least 64Kbps stream
      SecurityPort isolation
      Supports IP + MAC + port binding
      Identification and filtering of L2/L3/L4 based ACL
      Defend against DOS or TCP attacks
      Suppression of broadcast, multicast and unknown unicast packet
      DHCP Snooping, DHCP Option 82
      Command line authority control based on user levels
      AuthenticationIEEE 802.1x port-based network access control
      AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
      SNMP MIBsRFC 1213 MIB-II
      RFC 1215 Internet Engineering Task Force
      RFC 1271 RMON
      RFC 1354 IP-Forwarding MIB
      RFC 1493 Bridge MIB
      RFC 1643 Ether-like MIB
      RFC 1907 SNMPv2
      RFC 2011 IP/ICMP MIB
      RFC 2012 TCP MIB
      RFC 2013 UDP MIB
      RFC 2096 IP forward MIB
      RFC 2233 if MIB
      RFC 2452 TCP6 MIB
      RFC 2454 UDP6 MIB
      RFC 2465 IPv6 MIB
      RFC 2466 ICMP6 MIB
      RFC 2573 SNMPv3 notification
      RFC 2574 SNMPv3 VACM
      RFC 2674 Bridge MIB Extensions
      Standard Conformance
      Regulatory ComplianceFCC Part 15 Class A, CE
      Standards ComplianceIEEE 802.3z Gigabit 1000BASE-SX/LX
      IEEE 802.3ae 10Gb/s Ethernet
      IEEE 802.3x flow control and back pressure
      IEEE 802.3ad port trunk with LACP
      IEEE 802.1D Spanning Tree Protocol
      IEEE 802.1w Rapid Spanning Tree Protocol
      IEEE 802.1s Multiple Spanning Tree Protocol
      IEEE 802.1p Class of Service
      IEEE 802.1Q VLAN tagging
      IEEE 802.1X port authentication network control
      IEEE 802.1ab LLDP
      RFC 768 UDP
      RFC 793 TFTP
      RFC 791 IP
      RFC 792 ICMP
      RFC 2068 HTTP
      RFC 1112 IGMP v1
      RFC 2236 IGMP v2
      RFC 3376 IGMP v3
      RFC 2710 MLD v1
      FRC 3810 MLD v2
      RFC 2328 OSPF v2
      RFC 1058 RIP v1
      RFC 2453 RIP v2
      OperatingTemperature: 0 ~ 50 degrees C (24 x 10G SFP+ + 2 x QSFP28)
      Relative Humidity: 10 ~ 85% (non-condensing)
      StorageTemperature: -40 ~ 80 degrees C
      Relative Humidity: 5 ~ 95% (non-condensing)
      Diğer Özellikler
      Stok KoduPL-XGS-6350-24X4C
      Stok DurumuVar
      Garanti (Yıl)2
