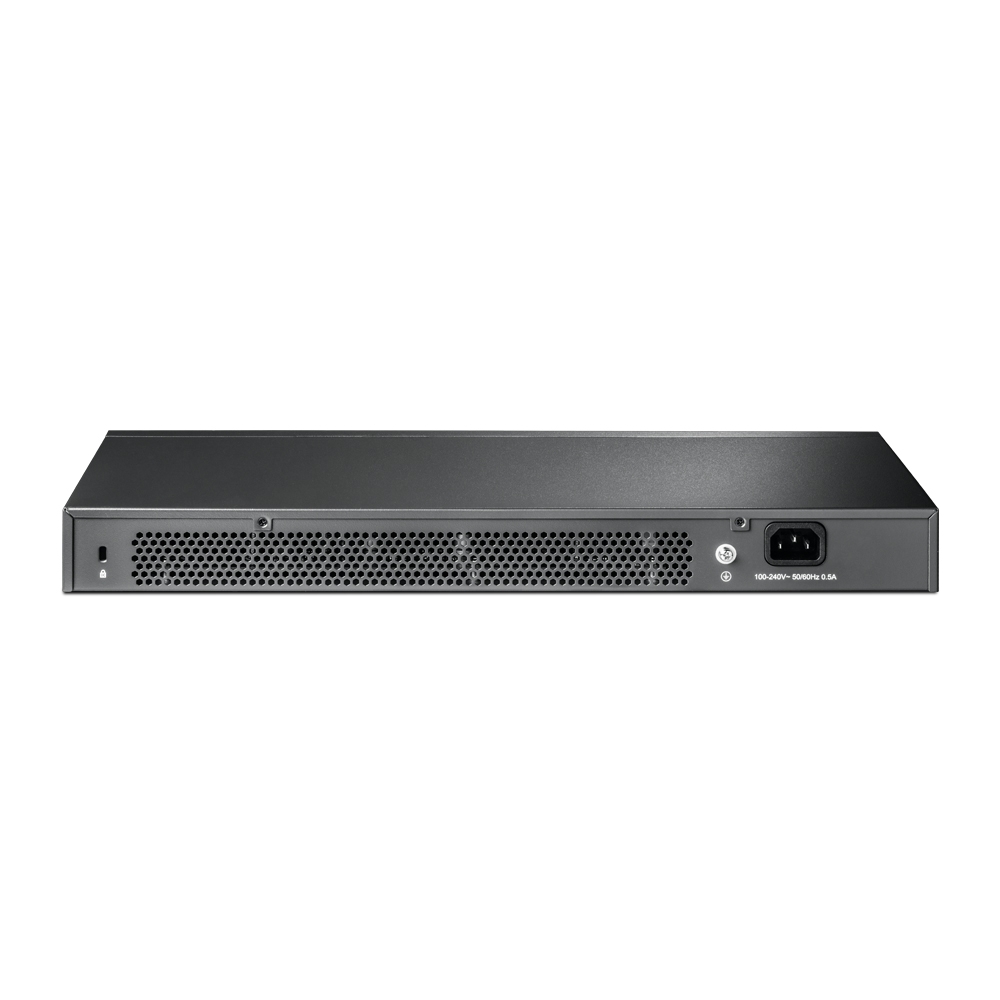

      T-Link TL-SG3428 24 Port Gigabit 4 Port SFP Yönetilebilir Rack Mount Ethernet Switch



      TL-SG3428

      JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

      • Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
      • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
      • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
      • Static Routing: Helps route internal traffic for more efficient use of network resources.
      • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
      • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
      • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
      DONANIM ÖZELLİKLERİ
      Arabirim• 24× 10/100/1000 Mbps RJ45 Ports
      • 4× Gigabit SFP Slots
      • 1× RJ45 Console Port
      • 1× Micro-USB Console Port
      Fan SayısıFanless
      Güç Kaynağı100-240 V AC~50/60 Hz
      Boyutlar ( W X D X H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
      MontajRack Mountable
      Maks. Güç Tüketimi19.22 W (110 V/60 Hz)
      Max Heat Dissipation65.58 BTU/h (110 V/60 Hz)
      PERFORMANS
      Anahtarlama Kapasitesi56 Gbps
      Paket Yönlendirme Hızı41.66 Mpps
      MAC Adres Tablosu8K
      Jumbo Frame9 KB
      YAZILIM ÖZELLİKLERİ
      Quality of Service• 8 priority queues
      • 802.1p CoS/DSCP priority
      • Queue scheduling
      - SP (Strict Priority)
      - WRR (Weighted Round Robin)
      - SP+WRR
      • Bandwidth Control
      - Port/Flow based Rating Limiting
      • Smoother Performance
      • Action for Flows
      - Mirror (to supported interface)
      - Redirect (to supported interface)
      - Rate Limit
      - QoS Remark
      L2 ve L2+ Özellikleri• Link Aggregation
      - Static link aggregation
      - 802.3ad LACP
      - Up to 8 aggregation groups and up to 8 ports per group
      • Spanning Tree Protocol
      - 802.1d STP
      - 802.1w RSTP
      - 802.1s MSTP
      - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
      • Loopback Detection
      - Port-based
      - VLAN based
      • Flow Control
      - 802.3x Flow Control
      - HOL Blocking Prevention
      • Mirroring
      - Port Mirroring
      - CPU Mirroring
      - One-to-One
      - Many-to-One
      - Tx/Rx/Both
      L2 Multicast• Supports 511 (IPv4, IPv6) IGMP groups
      • IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      - IGMP Snooping Querier
      - IGMP Authentication
      • IGMP Authentication
      • MVR
      • MLD Snooping
      - MLD v1/v2 Snooping
      - Fast Leave
      - MLD Snooping Querier
      - Static Group Config
      - Limited IP Multicast
      • Multicast Filtering: 256 profiles and 16 entries per profile
      VLAN• VLAN Group
      - Max 4K VLAN Groups
      • 802.1q Tagged VLAN
      • MAC VLAN: 12 Entries
      • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
      • GVRP
      • VLAN VPN (QinQ)
      - Port-Based QinQ
      - Selective QinQ
      • Voice VLAN
      Erişim Kontrol Listesi• Time-based ACL
      • MAC ACL
      - Source MAC
      - Destination MAC
      - VLAN ID
      - User Priority
      - Ether Type
      • IP ACL
      - Source IP
      - Destination IP
      - Fragment
      - IP Protocol
      - TCP Flag
      - TCP/UDP Port
      - DSCP/IP TOS
      - User Priority
      • Combined ACL
      • Packet Content ACL
      • IPv6 ACL
      • Policy
      - Mirroring
      - Redirect
      - Rate Limit
      - QoS Remark
      • ACL apply to Port/VLAN
      Güvenlik• IP-MAC-Port Binding
      - DHCP Snooping
      - ARP Inspection
      - IPv4 Source Guard
      • IPv6-MAC-Port Binding
      - DHCPv6 Snooping
      - ND Detection
      - IPv6 Source Guard
      • DoS Defend
      • Static/Dynamic Port Security
      - Up to 64 MAC addresses per port
      • Broadcast/Multicast/Unicast Storm Control
      - kbps/ratio/pps control mode
      • IP/Port/MAC based access control
      • 802.1X
      - Port based authentication
      - Mac based authentication
      - VLAN Assignment
      - MAB
      - Guest VLAN
      - Support Radius authentication and
      accountability
      • AAA (including TACACS+)
      • Port Isolation
      • Secure web management through HTTPS with SSLv3/TLS 1.2
      • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
      IPv6• IPv6 Dual IPv4/IPv6
      • Multicast Listener Discovery (MLD) Snooping
      • IPv6 ACL
      • IPv6 Interface
      • Static IPv6 Routing
      • IPv6 neighbor discovery (ND)
      • Path maximum transmission unit (MTU) discovery
      • Internet Control Message Protocol (ICMP) version 6
      • TCPv6/UDPv6
      • IPv6 applications
      - DHCPv6 Client
      - Ping6
      - Tracert6
      - Telnet (v6)
      - IPv6 SNMP
      - IPv6 SSH
      - IPv6 SSL
      - Http/Https
      - IPv6 TFTP
      L3 Özellikleri• 16 IPv4/IPv6 Interfaces
      • Static Routing
      - 48 static routes
      • Static ARP
      • 316 ARP Entries
      • Proxy ARP
      • Gratuitous ARP
      • DHCP Server
      • DHCP Relay
      • DHCP L2 Relay
      Yönetim• Web-based GUI
      • Command Line Interface (CLI) through console port, telnet
      • SNMPv1/v2c/v3
      - Trap/Inform
      - RMON (1, 2, 3, 9 groups)
      • SDM Template
      • DHCP/BOOTP Client
      • 802.1ab LLDP/LLDP-MED
      • DHCP AutoInstall
      • Dual Image, Dual Configuration
      • CPU Monitoring
      • Cable Diagnostics
      • EEE
      • Password Recovery
      • SNTP
      • System Log
      Gelişmiş Özellikler• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
      • Automatic Device Discovery
      • Batch Configuration
      • Batch Firmware Upgrading
      • Intelligent Network Monitoring
      • Abnormal Event Warnings
      • Unified Configuration
      • Reboot Schedule
      • ZTP (Zero-Touch Provisioning)*
      DİĞERLERİ
      SertifikaCE, FCC, RoHS
      Paket İçeriği• TL-SG3428 Switch
      • Power Cord
      • Quick Installation Guide
      • Rackmount Kit
      • Rubber Feet
      Ortam• Operating Temperature: 0–45 ? (32–113 ?);
      • Storage Temperature: -40–70 ? (-40–158 ?)
      • Operating Humidity: 10–90% RH non-condensing
      • Storage Humidity: 5–90% RH non-condensing
      Diğer Özellikler
      Stok KoduTL-SG3428
      MarkaTP-LINK
      Stok DurumuVar
      6935364010713
