KABLOSUZ | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
WiFi Kapasitesi | High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | 1.5 GHz Quad-Core CPU |

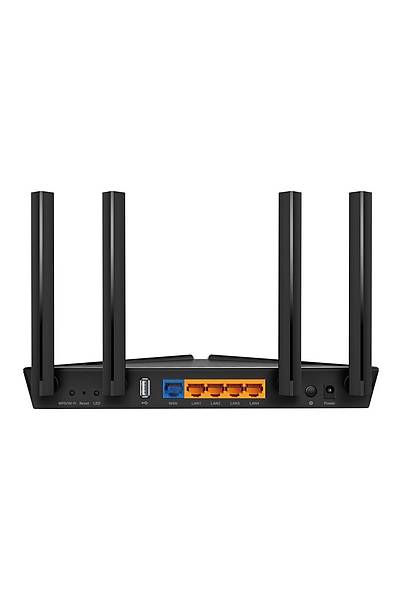

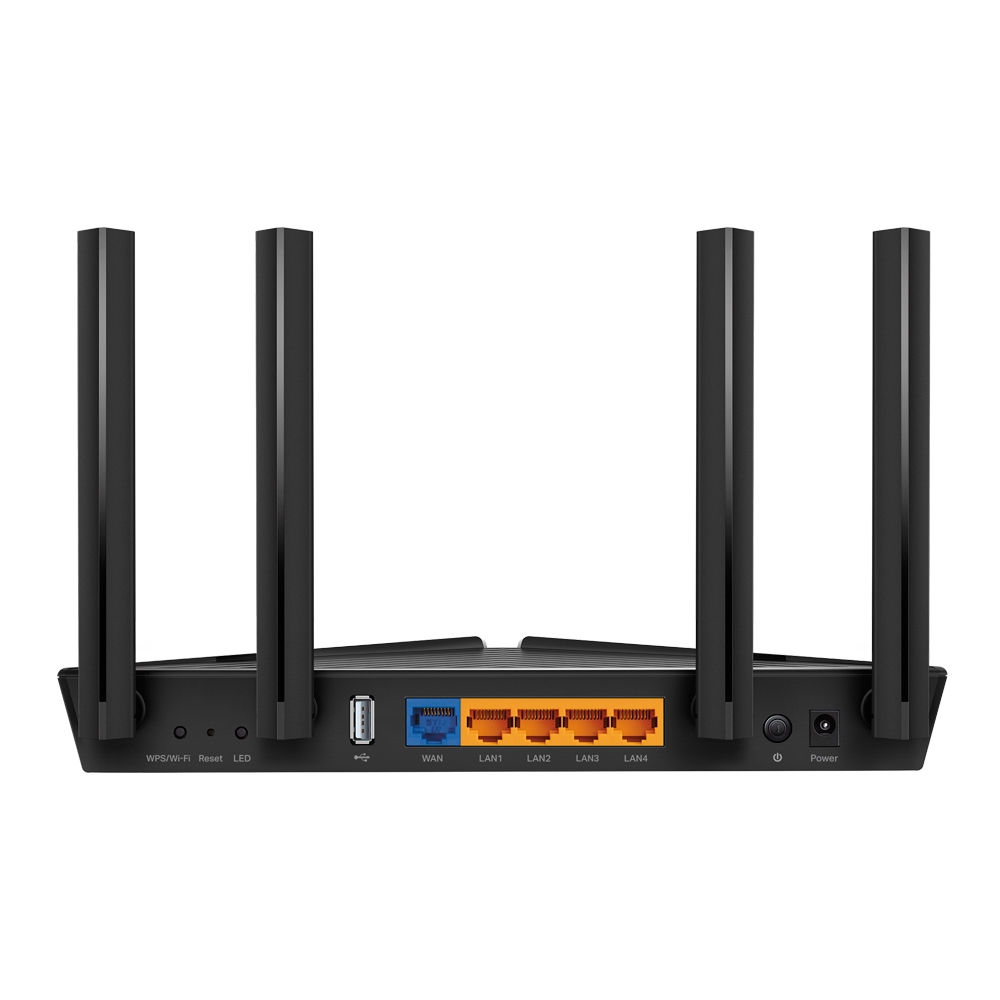

Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server |
Butonlar | WPS/Wi-Fi Button Power On/Off Button LED On/Off Button Reset Button |
Power | 12 V ? 1.5 A |
GÜVENLİK | |
---|---|
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |

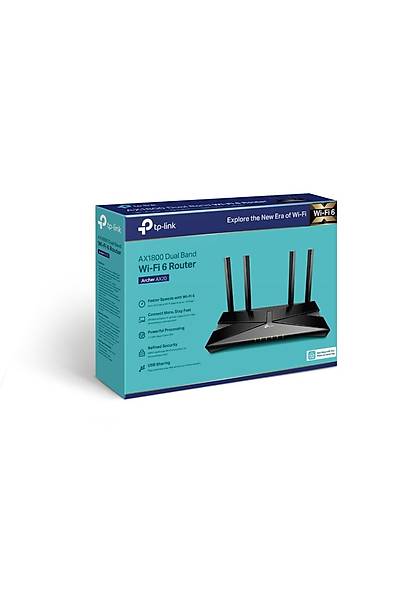

Package Contents | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
Diğer Özellikler | |
---|---|
Stok Kodu | ARCHER-AX20 |
Marka | TP-LINK |
Stok Durumu | Var |
Garanti (Yıl) | 2 |
