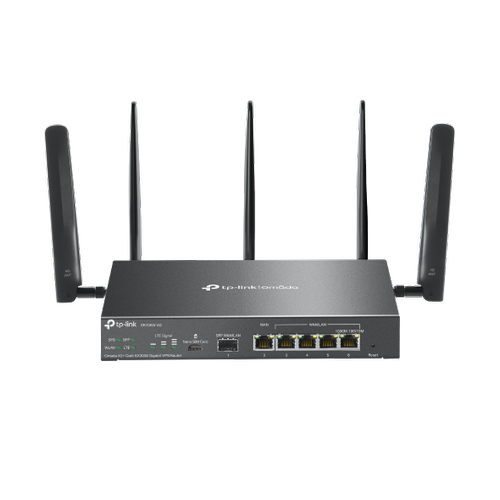

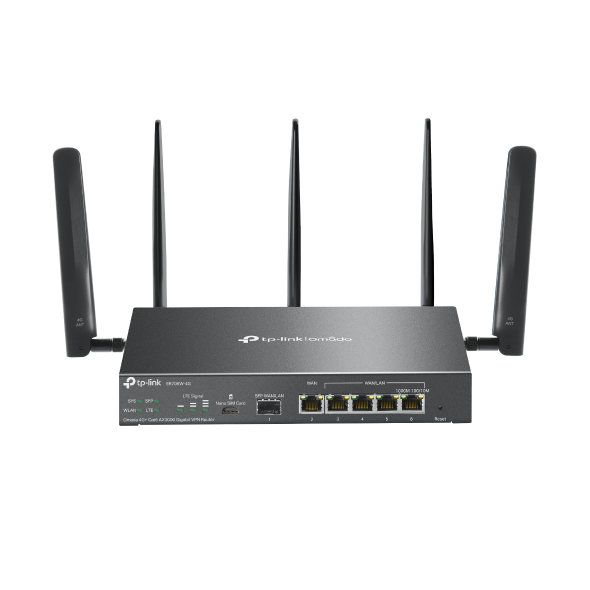

Tp-Link ER706W-4G 5 Port Gişgabit AX3000 Dual Band Wifi6 5 Antenli 4G LTE VPN Yönlendirici
ER706W-4G
Omada 4G+ Cat6 AX3000 Gigabit VPN Yönlendirici
- 4G+ Cat6 Desteği*: Nano SIM kart takarak 300 Mbps'ye kadar hızın keyfini çıkarın (ABD'de AT&T'nin Metin ve Veri planlarıyla uyumlu değildir**).
- AX3000 Çift Bant WiFi 6: 5 GHz'de 2402 Mbps ve 2.4 GHz'de 574 Mbps destekler***
- 6 Gigabit Ethernet Portu: Yüksek hızlı kablolu bağlantı sağlar.
- 5 Yüksek Kazançlı Çıkarılabilir Anten: Wi-Fi sinyallerini genişletir ve yoğunlaştırır.
- Merkezi Yönetim: Kolay yönetim için bulut erişimi ve Omada uygulaması.
- Omada Mesh: Mesh teknolojisini destekleyen EAP'lerle sorunsuz bir şekilde bağlanır.*?
- Yüksek Güvenlikli VPN: IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN destekler.?
| 4G |
|---|
| Network Type | LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Aggregation of EU:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
LTE Band of US:
• 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
(1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)
• 4G LTE-TDD: B41/B48 (2500/3600 MHz)
Carrier Aggregation of US:
B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71
B4+B4/B5/B7/B12/B13/B29/B30/B71
B5+B5/B7/B25/B30/B41/B66
B7+B7/B12/B66
B12+B12/B25/B30/B66
B13+B66
B14+B30/B66
B25+B25/B26/B41
B26+B41
B29+B30/B66
B30+B66
B41+B41
B48+B48
B66+B66/B71 |
|---|
| SIM Type | 1× Nano SIM Card |
|---|
| Frequency | • Downlink: 300 Mbps;
• Uplink: 50 Mbps |
|---|
| GÜVENLİK |
|---|
| DPI | Application control via DPI / Updated app library |
|---|
| IDS/IPS | Signature-based IPS/IDS threat detection |
|---|
| Access Control | Source/Destination IP Based Access Control |
|---|
| Filtreleme | • Web Group Filtering†
• URL Filtering
• Web Security† |
|---|
| ARP Denetleme | • Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding |
|---|
| Saldırı Koruması | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
|---|
| DONANIM ÖZELLİKLERİ |
|---|
| Arabirim | • 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports |
|---|
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
|---|
| Buton | Reset Button |
|---|
| Güç Kaynağı | 12VDC / 2A Power Adapter |
|---|
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
|---|
| Flash | 128 MB NAND |
|---|
| DRAM | 512 MB DDR4 |
|---|
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
|---|
| Boyutlar ( W X D X H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
|---|
| Anten | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |
|---|
| Montaj | Desktop/Wall-Mounting |
|---|
| Maks. Güç Tüketimi | EU: 15.4W
US: 17.3W |
|---|
| PERFORMANS |
|---|
| IPS Throughput | • TCP: 229 Mbps
• UDP: 188 Mbps |
|---|
| DPI Throughput | • TCP: 933 Mbps
• UDP: 927 Mbps |
|---|
| GRE | • Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps |
|---|
| WireGuard VPN | 387.7Mbps |
|---|
| Eşzamanlı Oturum | 150,000 |
|---|
| New Sessions /Second | 5,100 |
|---|
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
|---|
| NAT(DHCP) | 949.2Mbps / 941.1Mbps |
|---|
| NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
|---|
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
|---|
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
|---|
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps |
|---|
| OpenVPN | 115.5Mbps |
|---|
| L2TP VPN Throughput | • Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps |
|---|
| PPTP VPN Throughput | • Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps |
|---|
| SSL VPN Throughput | 122.5Mbps |
|---|
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
|---|
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
|---|
| KABLOSUZ ÖZELLİKLERİ |
|---|
| Gelişmiş Fonksiyonlar | • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio) |
|---|
| Misafir Ağ | Support |
|---|
| TEMEL FOKSİYONLAR |
|---|
| WAN Bağlantı Türü | • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
|---|
| MAC Klon | Modify WAN Address |
|---|
| DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
|---|
| SMS | Receive / Send SMS |
|---|
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
|---|
| VLAN | 802.1Q VLAN |
|---|
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
|---|
| GELİŞMİŞ FONKSİYONLAR |
|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
|---|
| Gelişmiş Yönlendirme | • Static Routing
• Policy Routing
• RIP†
• OSPF† |
|---|
| Bandwidth Kontrol | IP-Based Bandwidth Control |
|---|
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
|---|
| NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
|---|
| Session Limit | IP-Based Session Limit |
|---|
| Diğer Özellikler |
|---|
| Stok Kodu | ER706W-4G |
| Marka | TP-LINK |
| Stok Durumu | Var |
4895252500714
