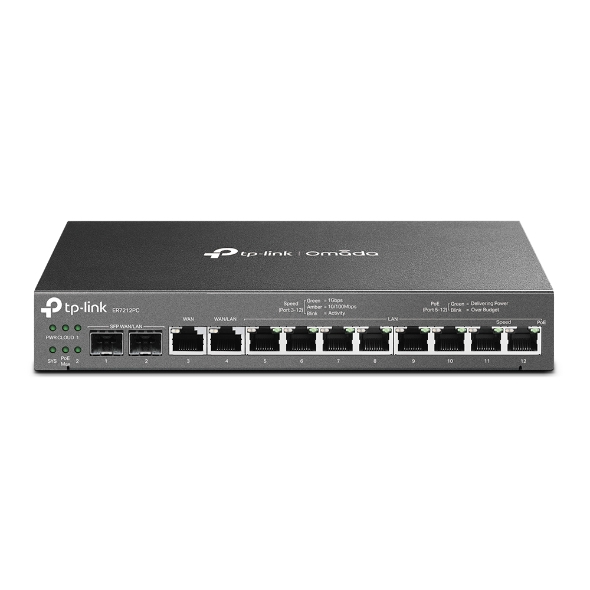

Tp-Link Omada ER7212PC 10 Port Gigabit 2 Port SFP VPn Router

Tp-Link Omada ER7212PC 10 Port Gigabit 2 Port SFP VPn Router
Görsel 1
Para_Puan : 181.803
Fiyat:
21.816,35 TL
Havale / EFT:
21.161,86 TL
4.217,83 TL'den başlayan taksit seçenekleri için tıklayın.
Aynı Gün Kargo Kargo Bedava

Ürüne Oy Verin

Satıcıya Danış

Tp-Link ER7212PC 10 Port Gigabit 2 Port SFP VPn Router

GÜVENLİK
Access ControlSource/Destination IP Based Access Control
FiltrelemeURL Filtering
ARP Denetleme-
Saldırı Koruması• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Arabirim• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Ağ Medyası• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan SayısıFanless
ButonReset Button
Güç Kaynağı53.5VDC/2.43A Adapter
PoE Budget8 ports PoE+ output, 110 W PoE Budget
Flash8Mb Nor + 4 GB EMMC
DRAM1 GB DDR3
LEDPWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Boyutlar ( W X D X H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Koruma4 kV surge protection
MuhafazaSteel
MontajDesktop/Wall-mount
Maks. Güç Tüketimi• 133.2W with PoE Max
• 13.88W without PoE
PERFORMANS
Eşzamanlı Oturum24,980
New Sessions /Second1,900
NAT (Static IP)935.5 Mbps / 942.1 Mbps
NAT(DHCP)940.2 Mbps / 941.7 Mbps
NAT(PPPoE)913.1 Mbps / 935.2 Mbps
NAT (L2TP)545.0 Mbps / 912.7 Mbps
NAT (PPTP)523.0 Mbps / 912.8 Mbps
IPsec VPN ThroughputAES256: 168.5 Mbps
OpenVPN34 Mbps
L2TP VPN Throughput• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate81,193 pps / 81,193 pps
TEMEL FOKSİYONLAR
WAN Bağlantı Türü• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC KlonModify WAN MAC Address
DHCP• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6support
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy
GELİŞMİŞ FONKSİYONLAR
ACLIP/Port/Protocol/Domain Name Filtering
Gelişmiş Yönlendirme• Static Routing
• Policy Routing
Bandwidth KontrolIP/Port-based Bandwidth Control
Load Balance• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session LimitIP-based Session Limit
VPN
SSL VPN-
IPsec VPN• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN• PPTP VPN Server
• PPTP VPN Client (10)§
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN• L2TP VPN Server
• L2TP VPN Client (10)§
• 16 Tunnels
• L2TP over IPSec
OpenVPN• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
AUTHENTICATION
Web Authentication• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
YÖNETİM
Omada AppYes
Centralized ManagementManagement of up to 2 Omada switches, and 10 Omada access points
Cloud AccessYes
ServisDynamic DNS (Dyndns, No-IP)
Bakım• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Zero-Touch Provisioning-
Management Features• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management of up to 2 Omada switches and 10 Omada access points
DİĞERLERİ
SertifikaCE, FCC, RoHS
Paket İçeriği• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
Sistem Gereksinimleri• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Ortam• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
Diğer Özellikler
Stok KoduER7212PC
MarkaTP-LINK
Stok DurumuVar
4897098688717
