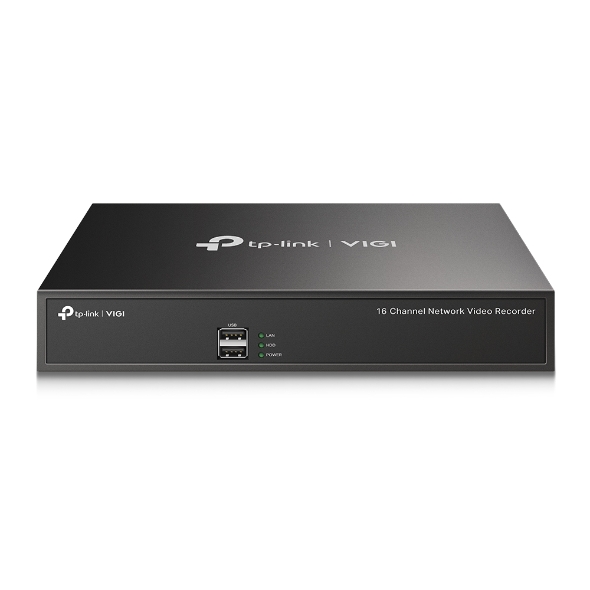

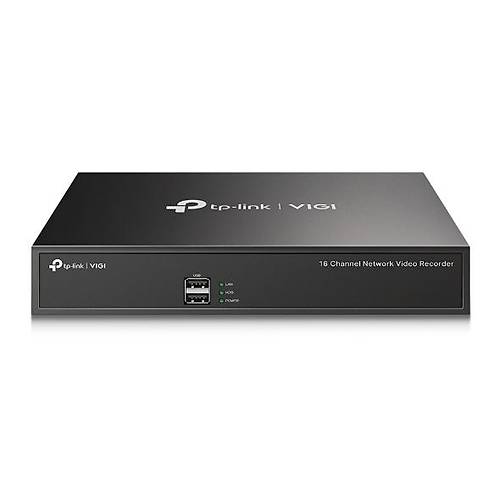

Tp-Link VIGI NVR1016H 16 Kanal H265 H264 5MP 1 HDD NVR Kayıt Cihazı
| Video and Audio |
|---|
| IP Video Input | 16-Channel |
|---|
| Incoming Bandwidth | 80 Mbps |
|---|
| Outgoing Bandwidth | 60 Mbps |
|---|
| HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| Video Output Mode | HDMI/VGA Simultaneous Output |
|---|
| Multi-View Display | 1/4/6/8/9/16 |
|---|
| DECODING |
|---|
| Audio Compression | G.711A/G.711U/G.726 |
|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
|---|
| Video Compression | H.265+/H.265/ H.264+/H.264 |
|---|
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| Synchronous Playback | 16-Channel |
|---|
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
|---|
| Record Management |
|---|
| Record Mode | • Manual Recording
• Scheduling Recording
• Motion Detection Recording |
|---|
| Playback Mode | • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback |
|---|
| Backup Mode | • Regular Backup
• Video Clip Backup |
|---|
| Playback Function | • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off |
|---|
| NETWORK |
|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
|---|
| Mobile Phone Access | Android, iOS |
|---|
| Incoming Bandwith | 80 Mbps |
|---|
| Outgoing Bandwidth | 60 Mbps |
|---|
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
|---|
| Interoperability | ONVIF, CGI |
|---|
| External Interface |
|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|---|
| USB Interface | 2× USB 2.0 |
|---|
| Audio Interface | 1, Audio In; 1, Audio Out |
|---|
| Alarm In/Out | N/A |
|---|
| Serial Interface | N/A |
|---|
| Power | 1× DC Jack |
|---|
| Reset Button | 1 |
|---|
| Speaker | N/A |
|---|
| eSATA | N/A |
|---|
| HDMI | 1 |
|---|
| VGA | 1 |
|---|
| HARD DISK |
|---|
| SATA | 1 SATA Interface |
|---|
| Capacity | Up to 16 TB |
|---|
| Alarm |
|---|
| General Alarm | • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame |
|---|
| Anomaly Alarm | • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception |
|---|
| Alarm Linkage | • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm |
|---|
| INTERFACES |
|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|---|
| USB Interface | 2× USB 2.0 |
|---|
| GENERAL |
|---|
| Operating Temperature | -10–55 °C |
|---|
| Storage Temperature | -40–70 °C |
|---|
| Storage Humidity | 10%~90% RH Non-Condensing |
|---|
| Weight | 578.5 g |
|---|
| Package Content | VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide |
|---|
| Working Temperature | • NVR: -10–55 °C
• Power Adapter: 0–40 °C |
|---|
| Working Humidity | 10%~90% RH Non-Condensing |
|---|
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
|---|
| External Power Supply | DC 12V/1.5A |
|---|
| Net Weight | 0.61 Kg |
|---|
| Gross Weight | 1.12 Kg |
|---|
| Max. Power Consumption | 4.25 W (without disk) |
|---|
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC |
|---|
| Diğer Özellikler |
|---|
| Stok Kodu | VIGI-NVR1016H |
| Marka | TP-LINK |
| Stok Durumu | Bu ürün geçici olarak temin edilememektedir. |
4897098683293
