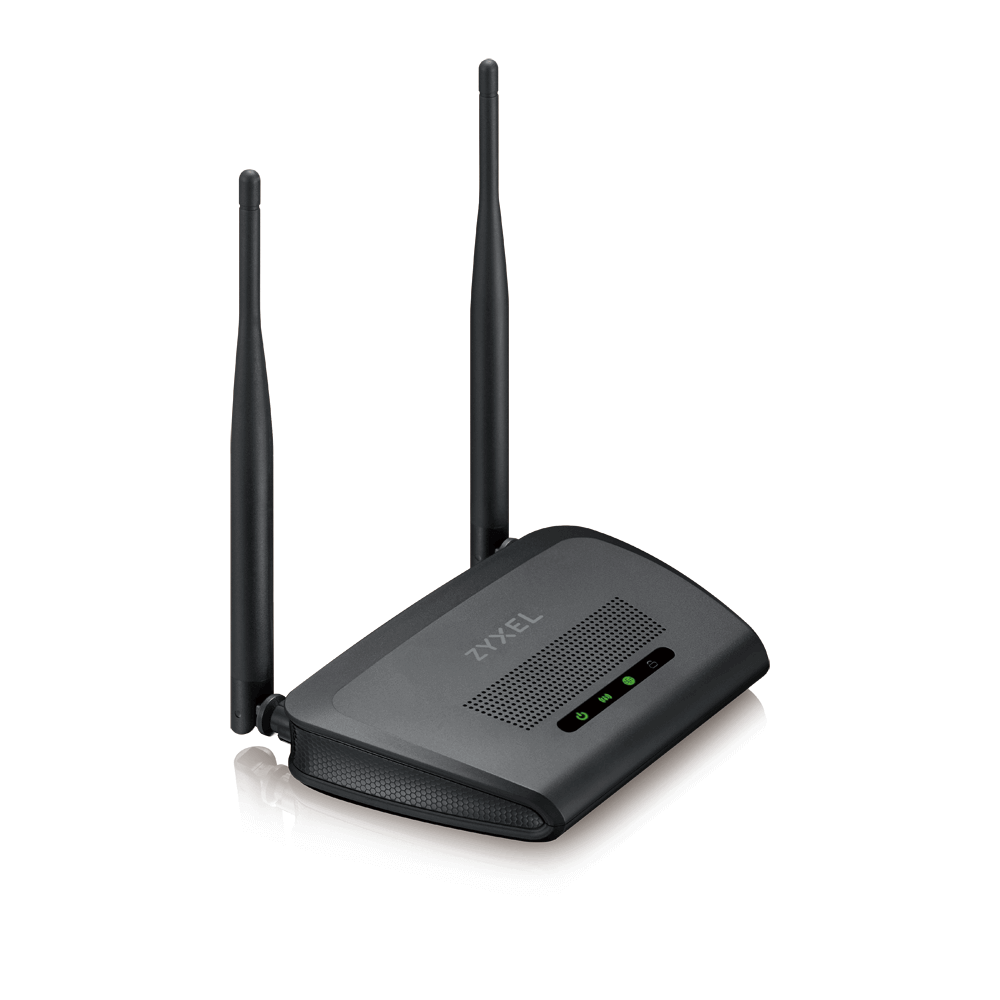

^{Zyxel NBG-418NV2-EU0101F V2 4 Port 10/100Mbps 300Mbps Router Access Point}

System Specifications

Wireless Standard

• 802.11 b/g/n

Wireless Transfer Rate

• Transmit: 300 Mbps*
• Receive: 300 Mbps*

Transmission Power

• CE: <=20dBm (2.4G frequency band: 2.400 – 2.4835 GHz)

Wireless Security

• 64/128 bit WEP, WPA-PSK/WPA2-PSK

WLAN Features

• Access point mode
• Universal repeater mode
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• Wireless scheduling
• Wireless output power management
• Auto channel selection
• MAC address filtering

Routing

• Network Address Translation (NAT)
• Connection type: Static IP, DHCP, PPPoE, PPTP
• DHCP server/client
• Dynamic DNS
• Bandwidth management
• Auto-IP change
• IPv6
• UPnP

VPN Pass-through

• IPSec
• PPTP
• L2TP

Firewall

• Denial of service (DoS) prevention

System Management

• Online firmware upgrade

Hardware Specifications

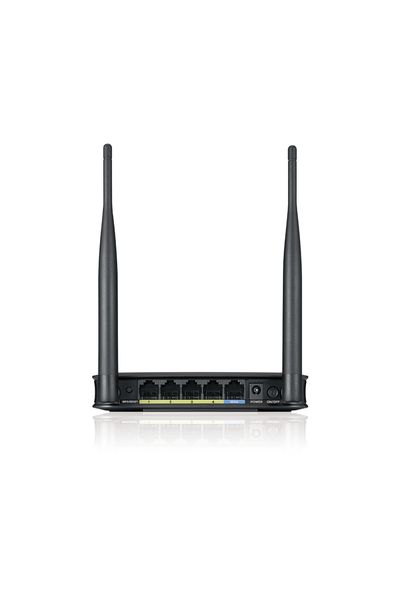

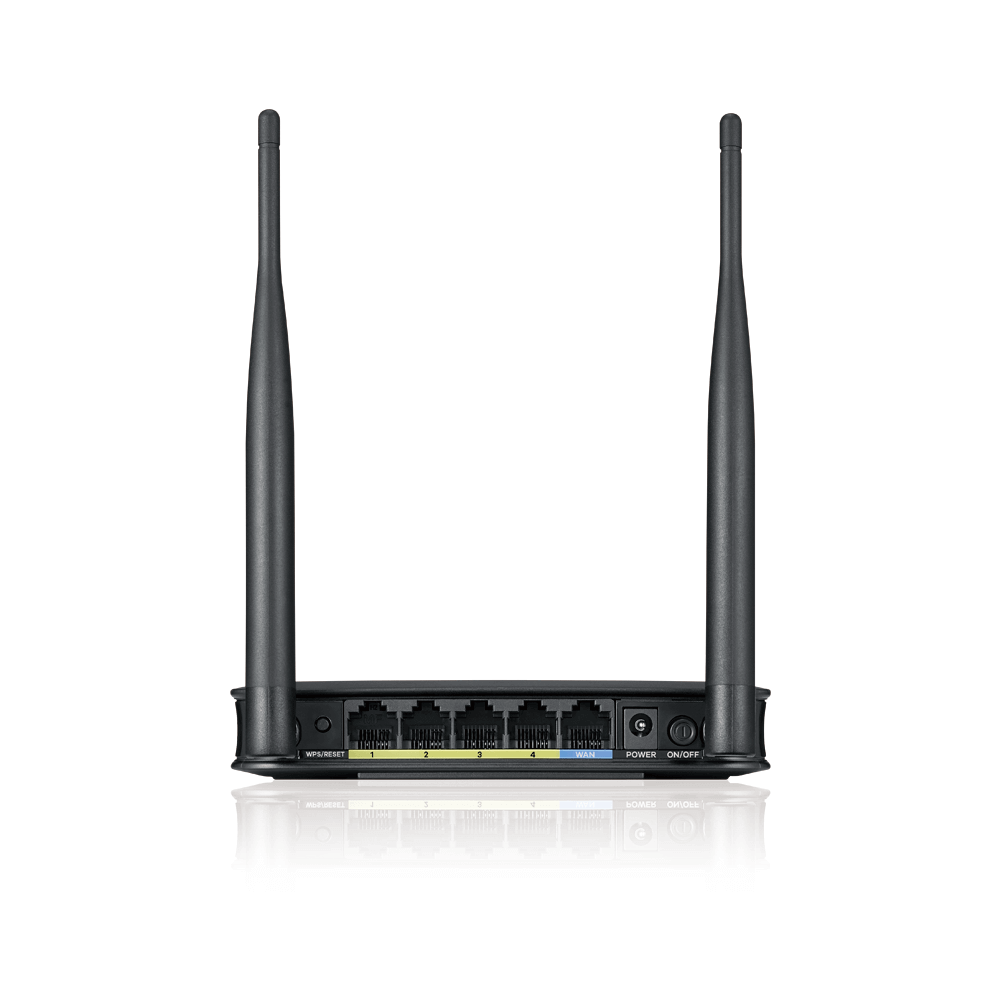

• WAN: One 10/100 Mbps Ethernet RJ-45 port
• LAN: Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
• LED indicators:
  • Power
  • WLAN
  • WAN
  • WPS
• Two 5 dBi fixed external antennas
• Button:
  • Power on/off button
  • WPS/Reset button
• Power: 5 V DC, 1 A
• Power consumption: 3.5 watt max.
